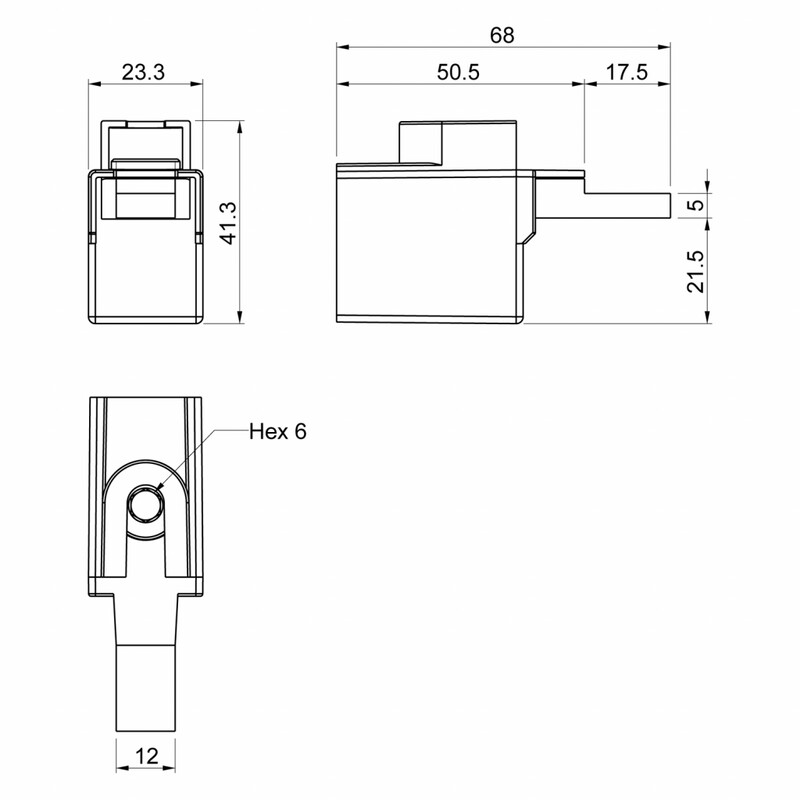

CABLE CONNECTOR KKL1x120T
Product code
1942102
Connector for aluminum and copper cables for Al/Cu 16 - 120 mm2. Suitable for KU100, KU125, and KU160 disconnectors and 80A-160A enclosed circuit breakers. Pin in the center of the connector. Tightening hex key: AV 6.
Torque:
- 12 (16 - 35 mm2)
- 22 (50 - 120 mm2)
Product details
Technical specifications
Product class (ETIM)Single- and multi-pole terminal strip (EC001284)
Explosion-tested version 'Ex e'no
Connectable conductor cross section fine-strand without cable end sleeve16-120 mm²
Connectable conductor cross section fine-strand with cable end sleeve16-120 mm²
Connectable conductor cross section solid-core16-120 mm²
Connectable conductor cross section multi-wired16-120 mm²
Rated current In245 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Number of poles1
Number of clamp positions per pole1
Mounting methodDirect mounting
Material insulation bodyThermoplastic
Operating temperature-40-80 °C
Inflammability class of insulation material according to UL94V2
Closing plate requiredno
Product codes
SAPCGV337
STK1942102
PLC1942102
GTIN/EAN6419410378700
Manufacturer part number37870
Vendor material number1942102
Basic information
Package measurements (L x W x H)67 x 40 x 24 mm
Package volume0.064 l
Package weight0.04 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39121421
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
