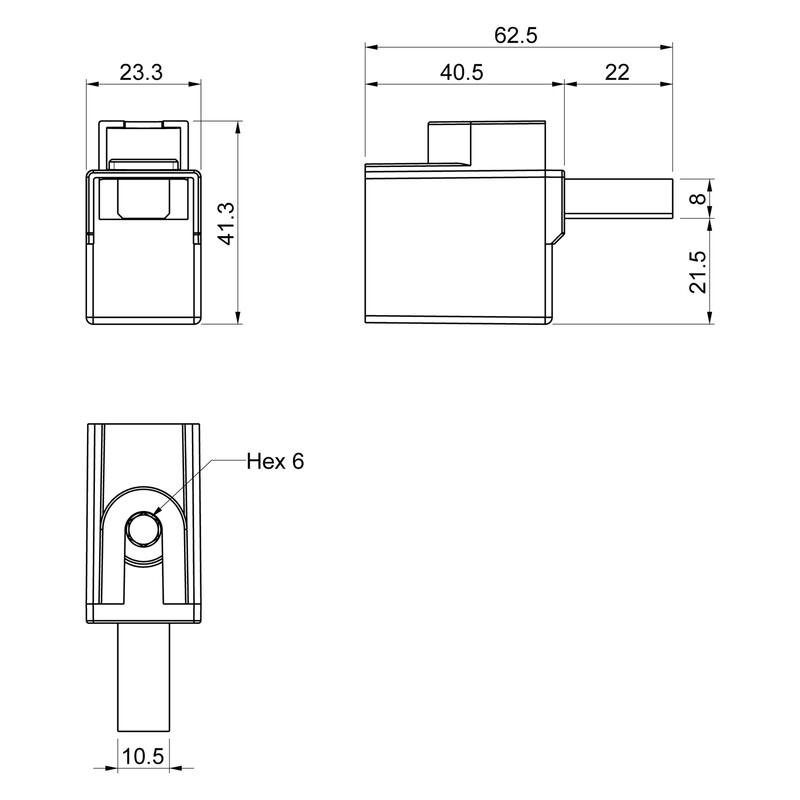

CABLE CONNECTOR KKL1x120T2
Product code
1942083
Aluminum and copper (Al/Cu) connector for cables Al/Cu 16-120 mm. Pin in the center of the connector. Tightening with hex key: AV 6/HEX 6.
Torque:
- 12 (16 - 50 mm)
- 22 (70 - 120 mm) Globe G2 Recessed white
Product details
Technical specifications
Product class (ETIM)Single- and multi-pole terminal strip (EC001284)
Explosion-tested version 'Ex e'no
Connectable conductor cross section fine-strand without cable end sleeve16 - 120 mm²
Connectable conductor cross section fine-strand with cable end sleeve16 - 120 mm²
Connectable conductor cross section solid-core16 - 120 mm²
Connectable conductor cross section multi-wired16 - 120 mm²
Rated current In245 A
Rated voltage690 V
Type of electrical connection 1Screw connection
Number of poles1
Number of clamp positions per pole1
Mounting methodDirect mounting
Material insulation bodyThermoplastic
Operating temperature-40 - 80 °C
Inflammability class of insulation material according to UL94V2
Closing plate requiredno
Product codes
SAPCFP798
STK1942083
PLC1942083
GTIN/EAN6419410378533
Manufacturer part number37853
Vendor material number1942083
Basic information
Package measurements (L x W x H)57 x 24 x 42 mm
Package volume0.057 l
Package weight0.037 kg
Base uniteach
Package units1 / 18
Package contents–
UNSPSC39121421
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0092
GWP, uniteach
Source for GWP dataEPD
