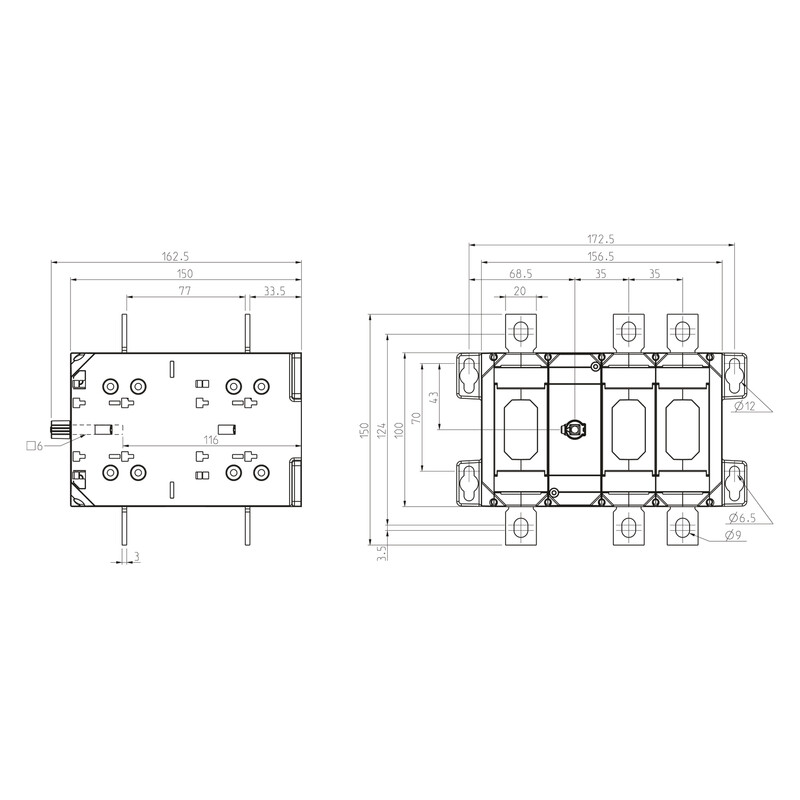

CHANGE-OVER SWITCH KU 3250WCO L200AD12T6LKX100
Product code
3602993
Made from 100% recyclable plastic Reliable switching device for demanding industrial applications Supplied with LKX 100 (3602850) knob and L=200 AD12/T6 shaft (3609237). Also available with yellow-red knob (LKX100 Y/R, 3602852) and different shaft lengths (100mm - 500mm) ordered separately. Available with direct knob directly with your own electrical number and product code. Auxiliary contacts available up to 8 NC + 8 NO (1.V160KU, 3600819 and 2.V160KU, 3600825). Connector and spacer plates (spacer plate VS 250, 3609216, connector covers VS250F and VS250H: 3609217 - 3609218) also available. Icw 690V (1s) 8kA R.M.S value 100kA Includes busbar connector and bolt bag for securing the busbar This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchyes
Number of switches2
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400 - 690 V
Rated permanent current Iu315 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V132 kW
Rated short-time withstand current lcw13.5 kA
Rated operation power at AC-23, 400 V132 kW
Conditioned rated short-circuit current Iq100 kA
Product codes
SAPCYB284
STK3602993
PLC3602993
GTIN/EAN6419410205280
Manufacturer part number20528
Vendor material number3602993
Basic information
Package measurements (L x W x H)150 x 157 x 163 mm
Package volume3.839 l
Package weight2.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)36.393
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID0.27
