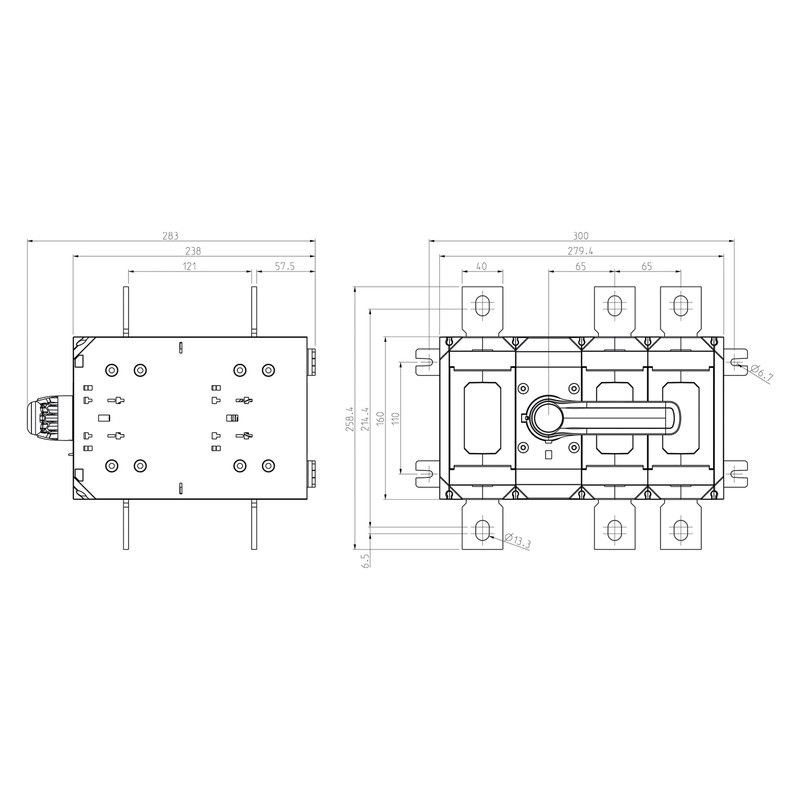

CHANGE-OVER SWITCH KU 3630CO SV
Product code
3602887
Made from 100% recyclable plastic Reliable switch for demanding industrial applications Includes direct actuator SV800 Auxiliary contacts available up to 8 NC + 8 NO (1.V160KU, 3600819 and 2.V160KU, 3600825) Connector and spacer plates (spacer plate VS 800, 3602856) also available Icw 690V (1s) 28kA R.M.S value 100kA Includes busbar connector and bolt bag for securing the busbar This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchyes
Number of switches2
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400-690 V
Rated permanent current Iu630 A
Rated permanent current at AC-23, 400 V630 A
Rated permanent current at AC-21, 400 V630 A
Rated short-time withstand current lcw28 kA
Rated operation power at AC-23, 400 V355 kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Product codes
SAPCYB331
STK3602887
PLC3602887
GTIN/EAN6419410484036
Manufacturer part number48403
Vendor material number3602887
Basic information
Package measurements (L x W x H)301 x 259 x 283 mm
Package volume22.062 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)53.93
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID3.13
