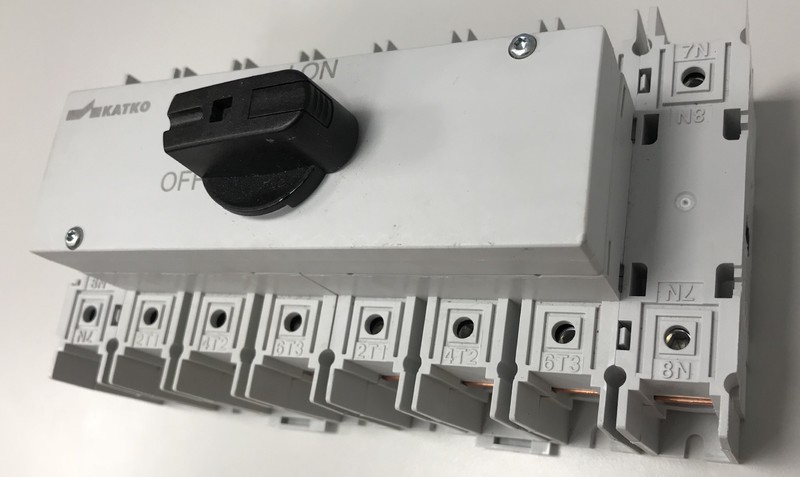

CHANGE-OVER SWITCH KU 4x100A 400V 55kW
Product code
3600811
Modular design
- DIN rail mounting
- 3- and 4-pole KU switches as standard
- 6- and 8-pole models consist of two 3- and 4-pole KU switches connected via a parallel lever
- Advanced silver contacts for safe and durable operation
- Compatible with handles LK10, LK11 (3 and 4 poles) and LK12 (6 and 8 poles and changeover switch)
- L=100/200/300 AD11
- L=100/200/300 AD11/VT (3 and 4 poles)
- L=100/200/300 AD12/VT (6 and 8 poles and changeover switch)
- V160KU auxiliary contact (1NO + 1NC) S-no 3600819, side mounting
- V160KU auxiliary contact (2NO + 2NC) S-no 3600825, side mounting
Connector KKL 1x120T (S-no 1942102) for aluminum cable 16 - 120mm².
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400 - 690 V
Rated permanent current Iu125 A
Rated permanent current at AC-23, 400 V100 A
Rated permanent current at AC-21, 400 V125 A
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V55 kW
Conditioned rated short-circuit current Iq65 kA
Number of poles8
Product codes
SAPCJR665
STK3600811
PLC3600811
GTIN/EAN6419410203613
Manufacturer part number20361
Vendor material number3600811
Basic information
Package measurements (L x W x H)103 x 188 x 100 mm
Package volume1.936 l
Package weight1.18 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
