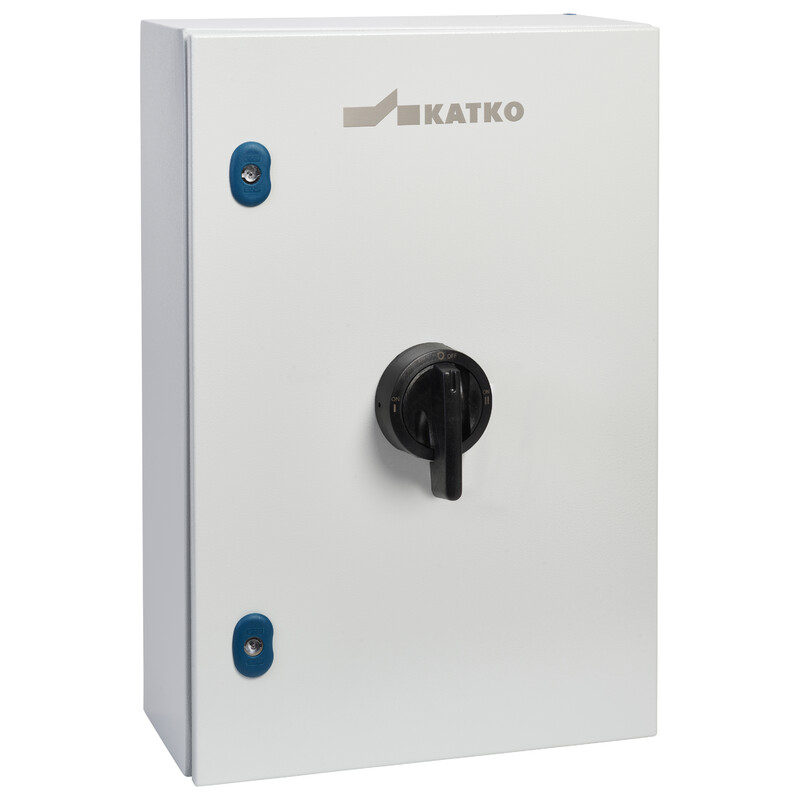

CHANGE-OVER SWITCH KUT 4125CO 4x125A 400V 55kW
Product code
3610358
Technical specifications
- 3-pole
- AC-23 A / 400 V / 125 A / 55 kW
- AC-23 A / 690 V / 80 A / 75 kW

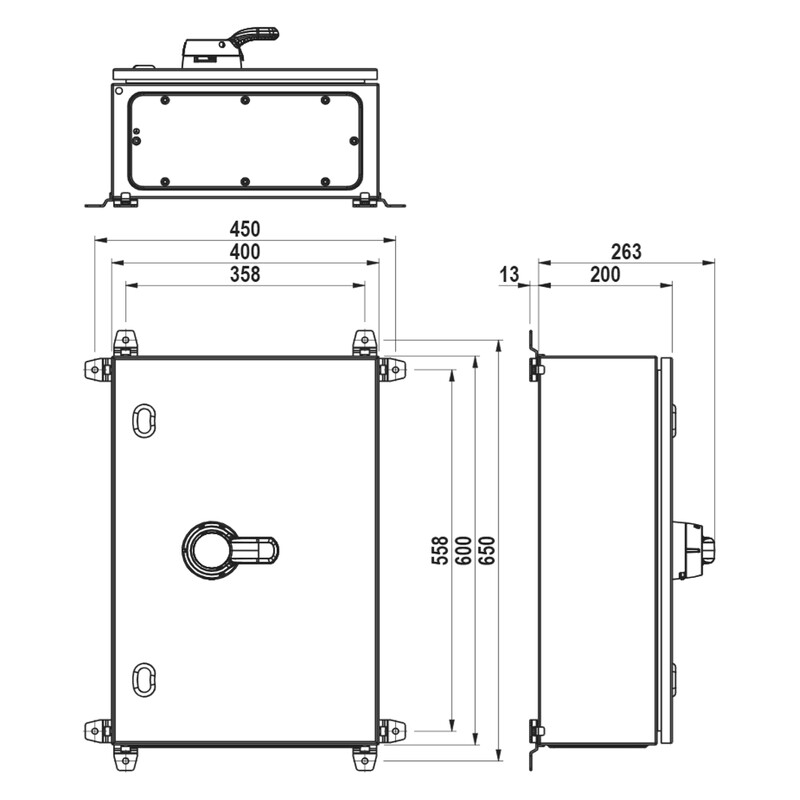

- 400 x 600 x 263 (l x w x h)
- Includes: shaft seals 3 x M50 (27 - 38 mm)
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchyes
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu160 A
Rated permanent current at AC-23, 400 V125 A
Rated permanent current at AC-21, 400 V160 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V55 kW
Switching power at 400 V0 kW
Product codes
SAPCYJ867
STK3610358
PLC3610358
GTIN/EAN6419410264430
Manufacturer part number26443
Vendor material number3610358
Basic information
Package measurements (L x W x H)263 x 400 x 600 mm
Package volume63.12 l
Package weight20.046 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
