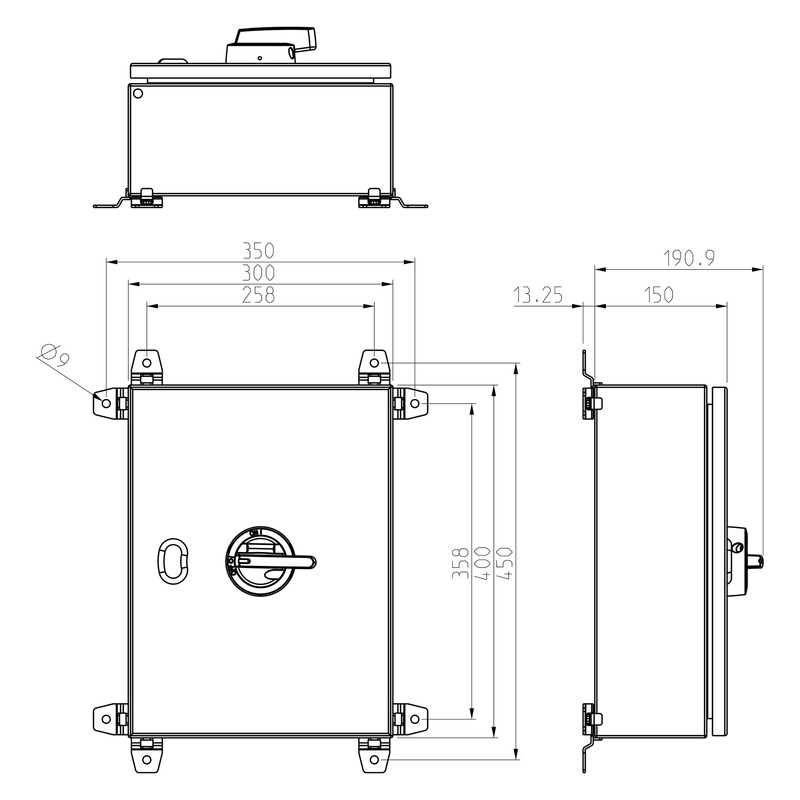

CHANGE-OVER SWITCH KUT 480CO 4x80A 400V 45kW
Product code
3610357
Technical specifications
- 3-pole
- AC-23A / 400 V / 80 A / 45 kW
- AC-23A / 690 V / 63 A / 55 kW
- includes gland seals 3 x M40 (19 – 28 mm)
- includes switch KU 3125 (max 70 mm2 copper)
- Saddle clamp KSL 30 (3602968)
- Auxiliary contact 2V160KU (2NO/2NC) (3600825)
- Auxiliary contact 1V160KU (1NO/1NC) (3600819)
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchyes
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu125 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V125 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V45 kW
Switching power at 400 V0 kW
Product codes
SAPCYJ866
STK3610357
PLC3610357
GTIN/EAN6419410264287
Manufacturer part number26428
Vendor material number3610357
Basic information
Package measurements (L x W x H)191 x 300 x 400 mm
Package volume22.92 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)27.4
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID1.087
