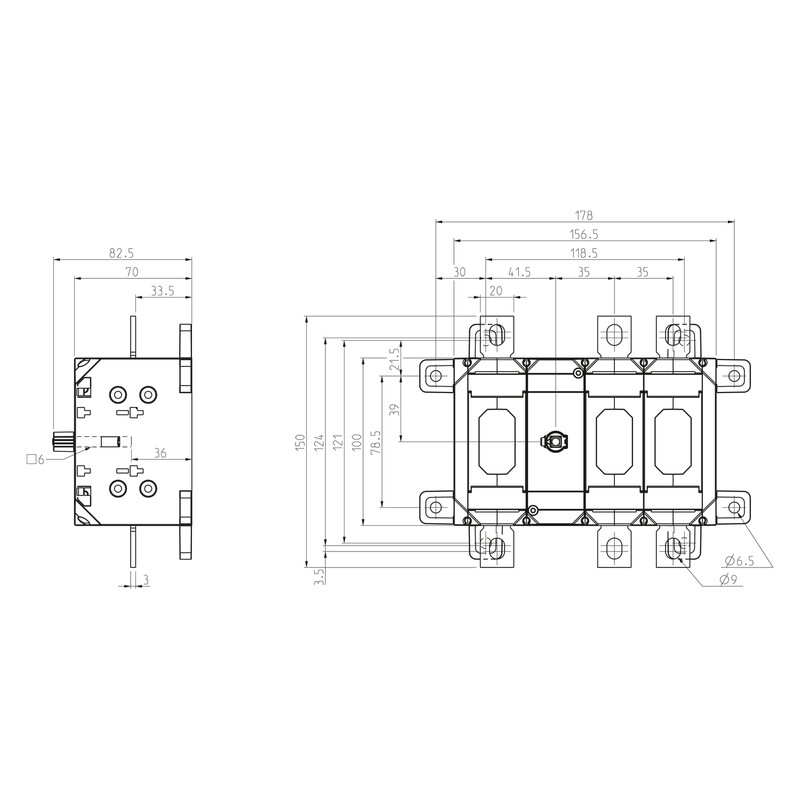

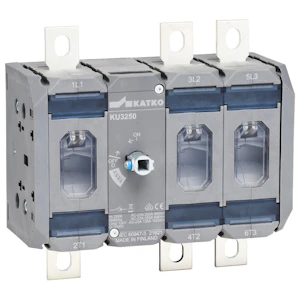

LOAD BREAK SWITCH KU 3250W L200AD12T6LKX100
Product code
3602985
Reliable switch for demanding industrial applications. Made from 100% recyclable plastic.
Supplied with LKX 100 (3602850) knob and L=200 AD12/T6 shaft (3609237). Also available with yellow-red knob (LKX100 Y/R, 3602852) and different shaft lengths (100-500 mm) ordered separately. Available with direct knob directly with your own electrical number and product code.
Auxiliary contacts available up to 8 NC + 8 NO (1.V160KU, 3600819 and 2.V160KU, 3600825). Connector and intermediate plates (intermediate plate VS 250, 3609216, connector covers VS250F and VS250H: 3609217 - 3609218) also available with Icw 690V (1s) 8kA R.M.S value 100kA. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400 - 690 V
Rated permanent current Iu315 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V132 kW
Rated short-time withstand current lcw13.5 kA
Rated operation power at AC-23, 400 V132 kW
Conditioned rated short-circuit current Iq100 kA
Product codes
SAPCYB281
STK3602985
PLC3602985
GTIN/EAN6419410205204
Manufacturer part number20520
Vendor material number3602985
Basic information
Package measurements (L x W x H)150 x 157 x 83 mm
Package volume1.955 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
