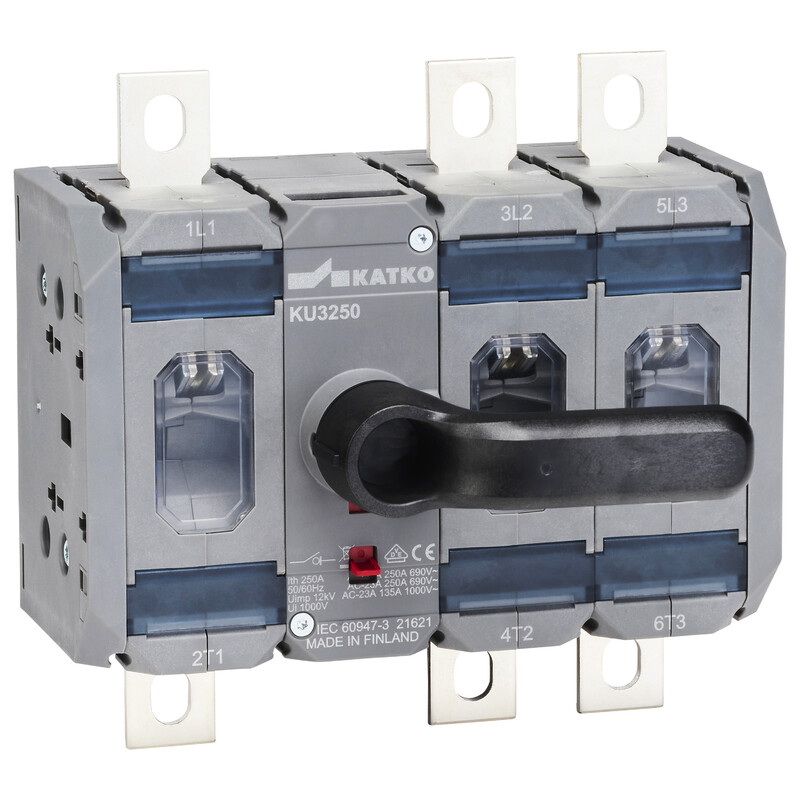

LOAD BREAK SWITCH KU 3250W SV
Product code
3602997
Made from 100% recyclable plastic Reliable switch for demanding industrial applications Includes direct drive SV250. Auxiliary contacts available up to 8 NC + 8 NO (1.V160KU 3600819 and 2.V160KU 3600825) Connector and intermediate plates (intermediate plate VS 250 3609216 connector covers VS250F and VS250H: 3609217 - 3609218) also available Icw 690V (1s) 8kA R.M.S value 100kA This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400 - 690 V
Rated permanent current Iu315 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated operation power at AC-3, 400 V132 kW
Rated short-time withstand current lcw13.5 kA
Rated operation power at AC-23, 400 V132 kW
Conditioned rated short-circuit current Iq100 kA
Product codes
SAPCYB286
STK3602997
PLC3602997
GTIN/EAN6419410205327
Manufacturer part number20532
Vendor material number3602997
Basic information
Package measurements (L x W x H)150 x 157 x 113 mm
Package volume2.661 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
