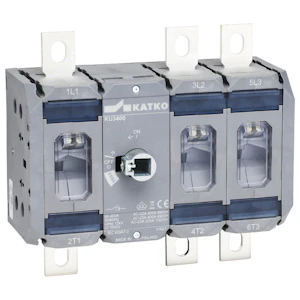

LOAD BREAK SWITCH KU 3400 LVK228LKX150
Product code
3602924
Reliable switch for demanding industrial applications. Made from 100% recyclable plastic.
Supplied with LKX 150 (3602851) handle and LVK=228 shaft (3602883). Also available with yellow-red handle (LKX150 Y/R, 3602853) and different shaft lengths (100-500 mm) ordered separately. Available with direct handle with own electrical number (3602935 - 3602942) and product code.
Auxiliary contacts available up to 8 NC + 8 NO (1.V160KU, 3600819 and 2.V160KU, 3600825). Connector and intermediate plates (intermediate plate VS 400, 3602943, connector covers VS400F and VS400H: 3602944 - 3602945) also available with Icw 690V (1s) 13.5kA R.M.S value 100kA. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC1000 V
Rated operating voltage400 - 690 V
Rated permanent current Iu400 A
Rated permanent current at AC-23, 400 V400 A
Rated permanent current at AC-21, 400 V400 A
Rated operation power at AC-3, 400 V200 kW
Rated short-time withstand current lcw13.5 kA
Rated operation power at AC-23, 400 V200 kW
Switching power at 400 V200 kW
Product codes
SAPCYB314
STK3602924
PLC3602924
GTIN/EAN6419410300169
Manufacturer part number30016
Vendor material number3602924
Basic information
Package measurements (L x W x H)305 x 255 x 130 mm
Package volume10.111 l
Package weight2.77 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
