LOAD BREAK SWITCH LEVER KE 325MÖM 3x25A 400V 11kW
Product code
3630311
Oil heater switch IP66
3-phase, 3x25A / 11kW / 400V
IP 66,
red,
indicator lamp,
polycarbonate enclosure This product description is an automated translation of the original Finnish description.
3-phase, 3x25A / 11kW / 400V
IP 66,
red,
indicator lamp,
polycarbonate enclosure This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400-690 V
Rated permanent current Iu25 A
Rated permanent current at AC-21, 400 V25 A
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Conditioned rated short-circuit current Iq50 kA
Number of poles3
Number of auxiliary contacts as normally closed contact0
Product codes
SAPALR489
STK3630311
PLC3630311
GTIN/EAN6419410303832
Manufacturer part number30383
Vendor material number3630311
Basic information

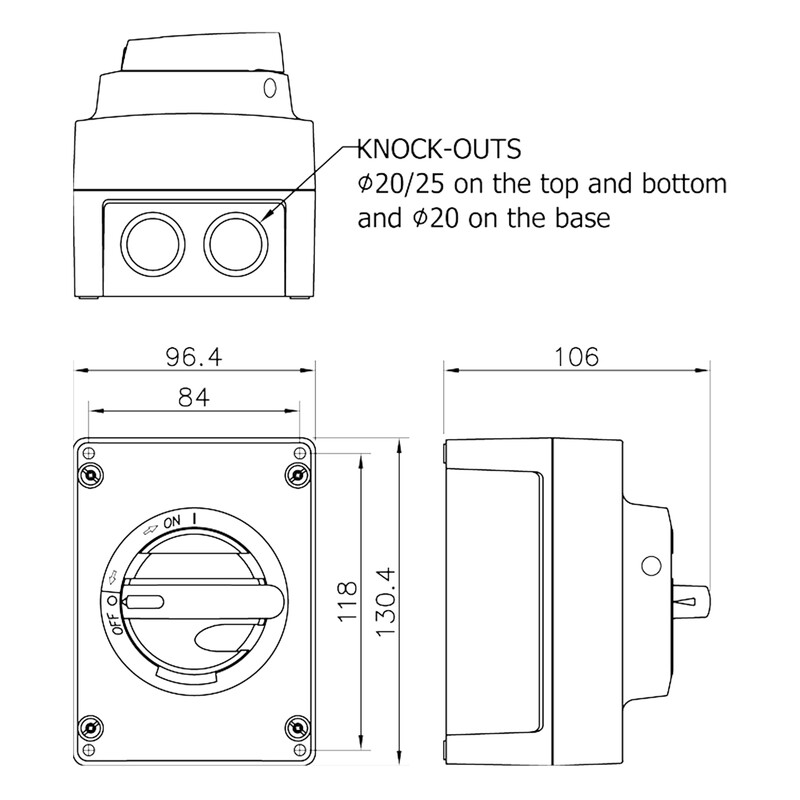

Package measurements (L x W x H)131 x 97 x 106 mm
Package volume1.347 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.785
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID5.61
