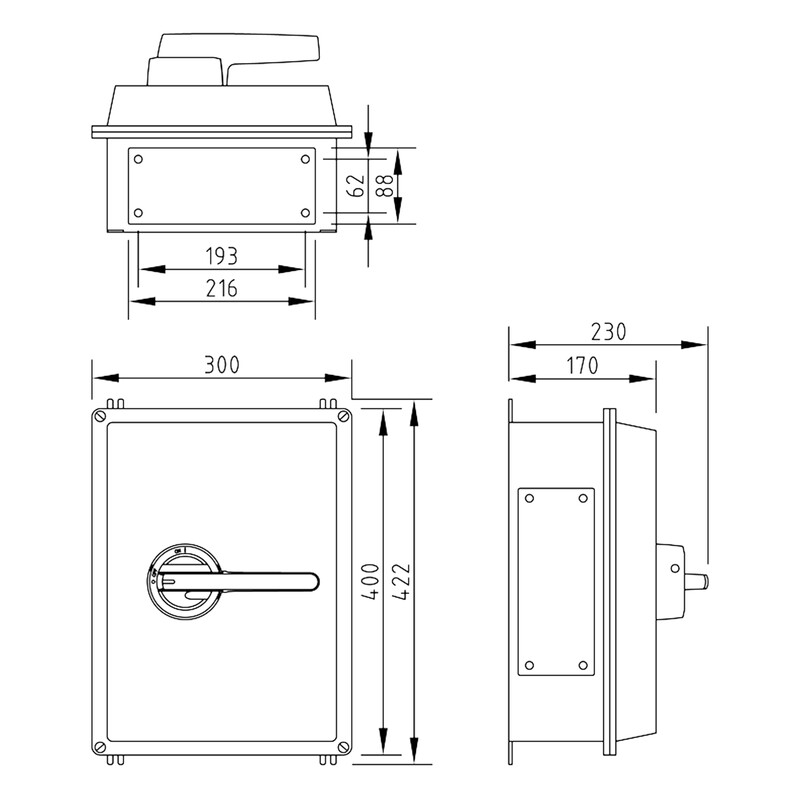

SAFETY SWITCH EMC KEA 3125 3x100A 400V 1V 55kW
Product code
3600607
Firerated EMC safety switch (IP65)
Firerated EMC safety switch / Firerated EMC-safety switch (IP65)
200 degrees / 3h
Includes aux. contact 1NO + 1NC
3-pole / 3-Poles
AC-23 / 400V / 100A / 55kW
AC-23 / 690V / 80A / 55kW
Aluminium enclosure
Available separately:
Aux. contact:
KU2.V (3600491) 2NO + 2NC
Padlockable
Good UV radiation protection
Good protection against various chemicals
Excellent resistance to harsh weather conditions This product description is an automated translation of the original Finnish description.
Firerated EMC safety switch / Firerated EMC-safety switch (IP65)
200 degrees / 3h
Includes aux. contact 1NO + 1NC
3-pole / 3-Poles
AC-23 / 400V / 100A / 55kW
AC-23 / 690V / 80A / 55kW
Aluminium enclosure
Available separately:
Aux. contact:
KU2.V (3600491) 2NO + 2NC
Padlockable
Good UV radiation protection
Good protection against various chemicals
Excellent resistance to harsh weather conditions This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400-690 V
Rated permanent current Iu160 A
Rated permanent current at AC-23, 400 V100 A
Rated permanent current at AC-21, 400 V160 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw4 kA
Rated operation power at AC-23, 400 V55 kW
Switching power at 400 V0 kW
Product codes
SAPCMP741
STK3600607
PLC3600607
GTIN/EAN6419410386194
Manufacturer part number38619
Vendor material number3600607
Basic information
Package measurements (L x W x H)422 x 300 x 230 mm
Package volume29.118 l
Package weight8.6 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)223.6516
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID20.9
