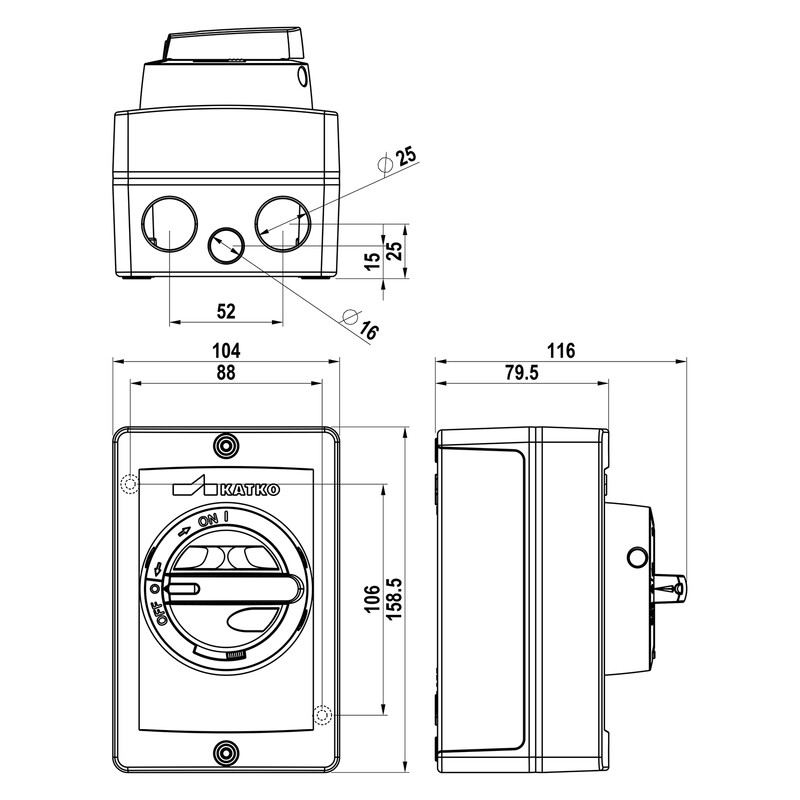

SAFETY SWITCH EMC KEA 316 1NO 3x16A 400V 7,5kW
Product code
3630312
EMC-shielded aluminum-enclosed 3-pole safety switch AC-23 @ 400 V: 16 A / 7.5 kW | AC-23 @ 690 V: 16 A / 11 kW. Includes switch: KU 316 (3609687), cable entry size to enclosure (Cu only): 1.5-16 mm2, auxiliary contact: 1NO40KU (3610339), cable entries: 2 x M25 (11-17 mm) EMC-shielded metal + 1 x M16 (5-10 mm) metal. Installation directions for entries must be specified when ordering.
Available separately as protective cover KSL 12 (3602857). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw0 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V0 kW
Product codes
SAPDCC327
STK3630312
PLC3630312
GTIN/EAN6419410298497
Manufacturer part number29849
Vendor material number3630312
Basic information
Package measurements (L x W x H)160 x 105 x 120 mm
Package volume2.016 l
Package weight0.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
