SAFETY SWITCH EMC KEA 325 3x25A 400V 1V 11kW
Product code
3600600
Fire-rated EMC safety switch (IP66)
Fire-rated EMC safety switch / Firerated EMC-safety switch (IP66)
200 degrees / 3h
Includes aux. contact 1NO + 1NC
3-pole / 3-Poles
AC-23 / 400V / 25A / 11kW
AC-23 / 690V / 25A / 22kW
Aluminium enclosure
Available separately:
Aux. contact:
KU2.V (3600491) 2NO + 2NC
Padlockable
Good UV radiation protection
Good protection against various chemicals
Excellent for harsh weather conditions
Contain gland seals:

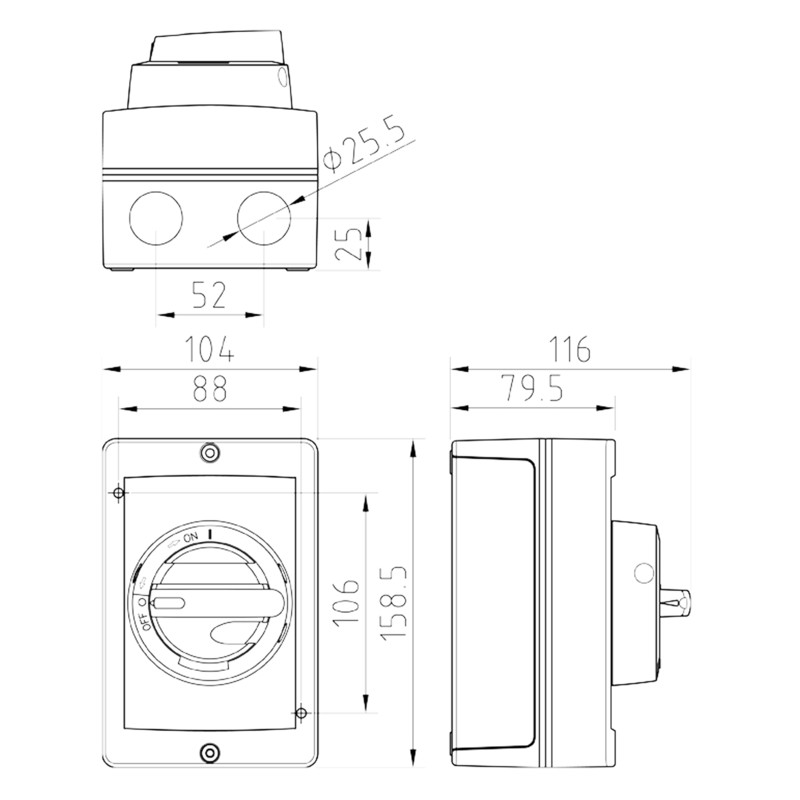

2xM25 EMC (if aux. contact + M16) enclosure A2 = 104x159x80 This product description is an automated translation of the original Finnish description.
Fire-rated EMC safety switch / Firerated EMC-safety switch (IP66)
200 degrees / 3h
Includes aux. contact 1NO + 1NC
3-pole / 3-Poles
AC-23 / 400V / 25A / 11kW
AC-23 / 690V / 25A / 22kW
Aluminium enclosure
Available separately:
Aux. contact:
KU2.V (3600491) 2NO + 2NC
Padlockable
Good UV radiation protection
Good protection against various chemicals
Excellent for harsh weather conditions
Contain gland seals:
2xM25 EMC (if aux. contact + M16) enclosure A2 = 104x159x80 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400-690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V0 kW
Product codes
SAPCMP745
STK3600600
PLC3600600
GTIN/EAN6419410333792
Manufacturer part number33379
Vendor material number3600600
Basic information
Package measurements (L x W x H)160 x 105 x 120 mm
Package volume2.016 l
Package weight0.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
