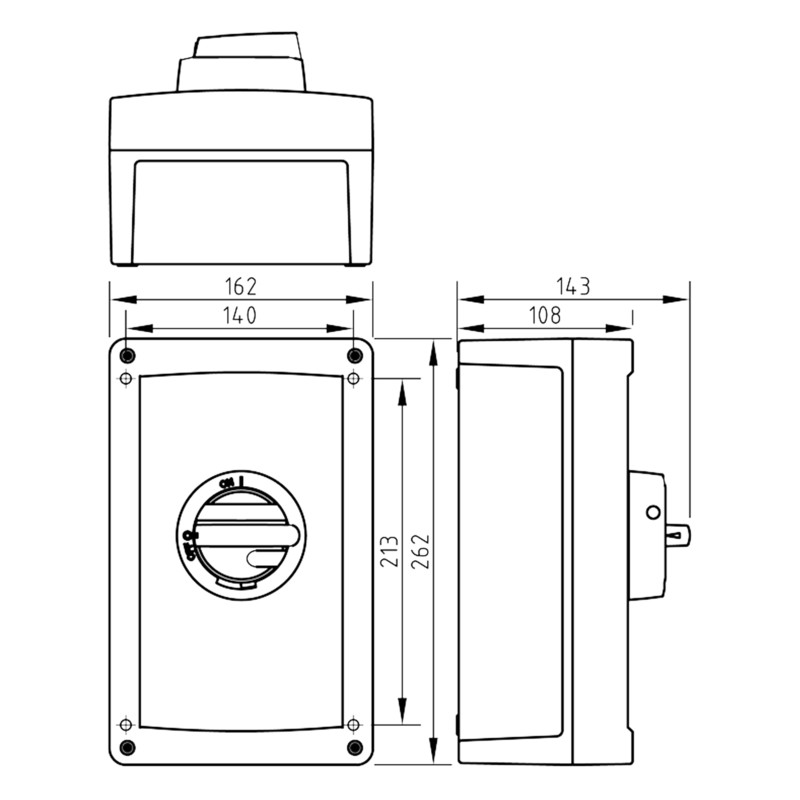

SAFETY SWITCH EMC KEA 332 1NO 3x32A 400V 15kW
Product code
3635179
EMC-shielded aluminum-enclosed 3-pole safety switch AC-23 @ 400 V: 32 A / 15 kW | AC-23 @ 690 V: 25 A / 22 kW. Includes switch: KU 340 (3609693), cable entry size to enclosure (Cu only): 1.5-16 mm², auxiliary contact: 1NO40KU (3610339), cable entries: 2 x M40 (19-28 mm) EMC-shielded metal + 1 x M16 (5-10 mm) metal. Installation directions for entries must be specified when ordering.
Protective cover KSL 22 (3602859) available separately.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V32 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw0 kA
Rated operation power at AC-23, 400 V15 kW
Switching power at 400 V0 kW
Product codes
SAPDCC333
STK3635179
PLC3635179
GTIN/EAN6419410297438
Manufacturer part number29743
Vendor material number3635179
Basic information
Package measurements (L x W x H)108 x 162 x 262 mm
Package volume4.584 l
Package weight2.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
