SAFETY SWITCH EMC KEA 363 3x40A 400V 1V 22kW
Product code
3600603
Fire-rated EMC safety switch (IP66)
Fire-rated EMC safety switch / Firerated EMC-safety switch (IP66)
200 degrees / 3h
Includes aux. contact 1NO + 1NC
3-pole
AC-23 / 400V / 40A / 22kW
AC-23 / 690V / 40A / 37kW
Aluminium enclosure
Available separately:
Aux. contact:
KU2.V (3600491) 2NO + 2NC
Padlockable
Excellent UV resistance
Excellent protection against various chemicals
Excellent performance in harsh weather conditions
Includes gland seals:

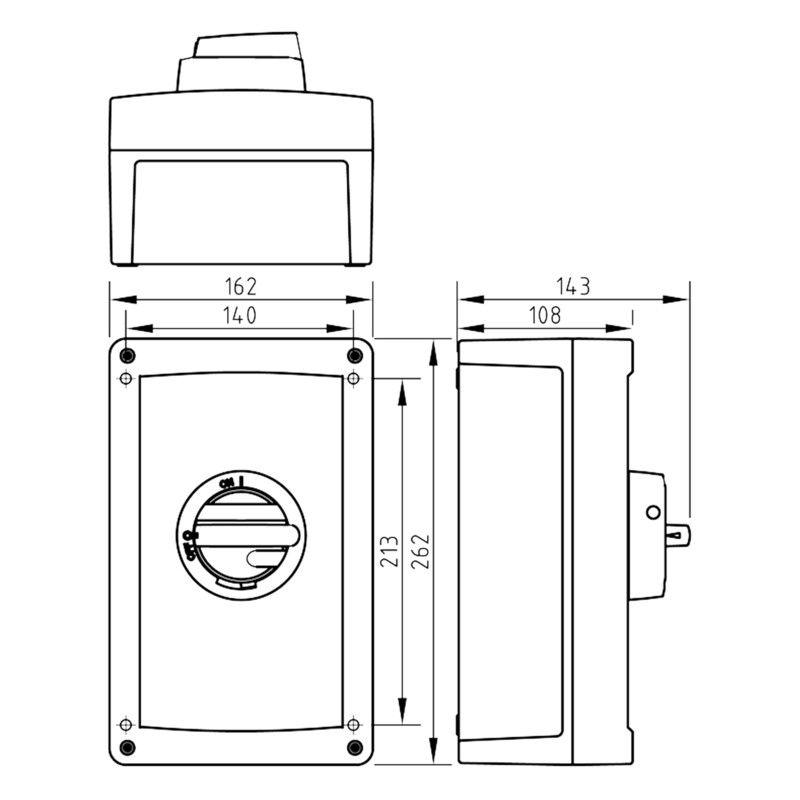

2xM40 EMC (if aux. contact + M16) enclosure A3 = 162x262x108 This product description is an automated translation of the original Finnish description.
Fire-rated EMC safety switch / Firerated EMC-safety switch (IP66)
200 degrees / 3h
Includes aux. contact 1NO + 1NC
3-pole
AC-23 / 400V / 40A / 22kW
AC-23 / 690V / 40A / 37kW
Aluminium enclosure
Available separately:
Aux. contact:
KU2.V (3600491) 2NO + 2NC
Padlockable
Excellent UV resistance
Excellent protection against various chemicals
Excellent performance in harsh weather conditions
Includes gland seals:
2xM40 EMC (if aux. contact + M16) enclosure A3 = 162x262x108 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPCMP738
STK3600603
PLC3600603
GTIN/EAN6419410333815
Manufacturer part number33381
Vendor material number3600603
Basic information
Package measurements (L x W x H)262 x 162 x 143 mm
Package volume6.069 l
Package weight2.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)14.424
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID53.48
