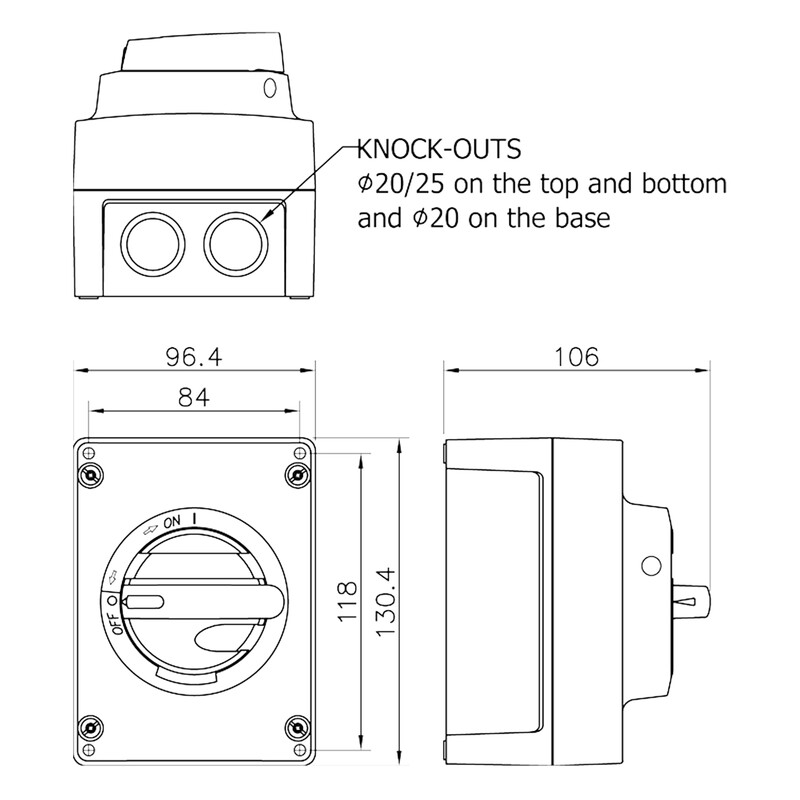

SAFETY SWITCH EMC KEM 325 1NO 3x25A 400V 11kW
Product code
3662127
EMC-shielded plastic-enclosed 3-pole safety switch AC-23 @ 400V: 25A / 11kW | AC-23 @ 690V: 25A / 22kW. Includes switch KU 325 (3609692). Cable size for terminal box (Cu only) 1.5-16 mm2. Includes auxiliary contact 1NO40KU (3610339). Cable entries: 2 x M25 (11-17 mm) EMC-shielded metal + 1 x M20 (6-12 mm) plastic.
Available separately: protective cover KSL 10 (3600594). Suitable auxiliary contact: 3610339 – 1NO or 3610340 – 1NC. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V0 kW
Product codes
SAPDCC345
STK3662127
PLC3662127
GTIN/EAN6419410296912
Manufacturer part number29691
Vendor material number3662127
Basic information
Package measurements (L x W x H)106 x 97 x 131 mm
Package volume1.347 l
Package weight0.53 kg
Base uniteach
Package units1 / 66 / 528
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
