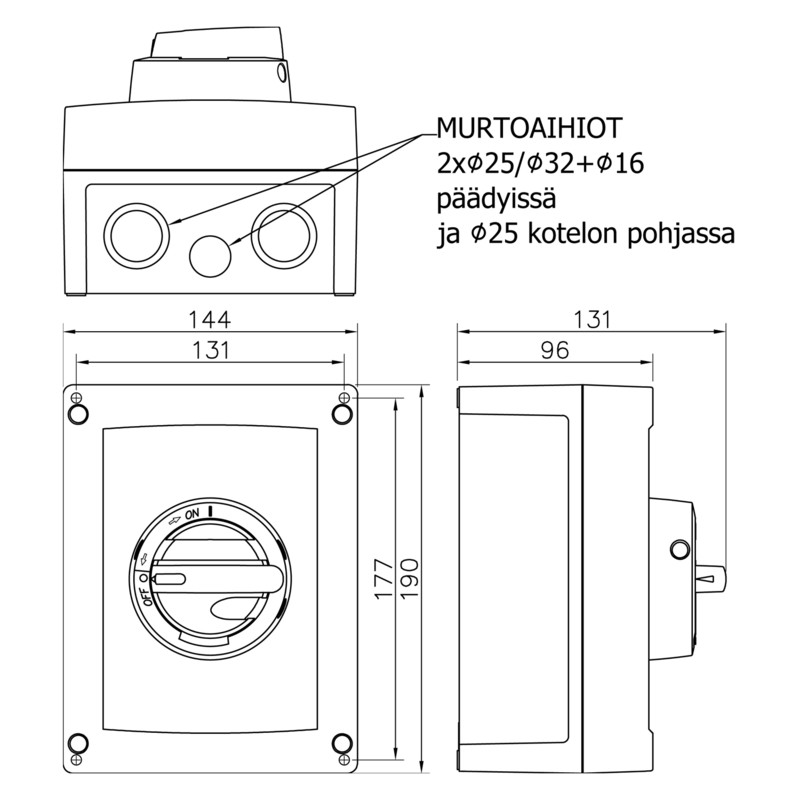

SAFETY SWITCH EMC KEM 332 1NO 3x32A 400V 15kW
Product code
3635145
EMC-shielded plastic-enclosed 3-pole safety switch AC-23 @ 400V: 32A / 15kW | AC-23 @ 690V: 25A / 22kW. Includes switch KU 340 (3609693). Cable size for terminal box (Cu only) 1.5-16 mm2. Includes auxiliary contact 1NO40KU (3610339). Cable entries: 2 x M32 (15-21 mm) EMC-shielded metal + 1 x M16 (5-10 mm) plastic.
Available separately: protective cover KSL 20 (3600595). Suitable auxiliary contact: 3610339 – 1NO or 3610340 – 1NC. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V32 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw0 kA
Rated operation power at AC-23, 400 V15 kW
Switching power at 400 V0 kW
Product codes
SAPDCC331
STK3635145
PLC3635145
GTIN/EAN6419410296929
Manufacturer part number29692
Vendor material number3635145
Basic information
Package measurements (L x W x H)205 x 145 x 135 mm
Package volume4.013 l
Package weight0.92 kg
Base uniteach
Package units1 / 29 / 198
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
