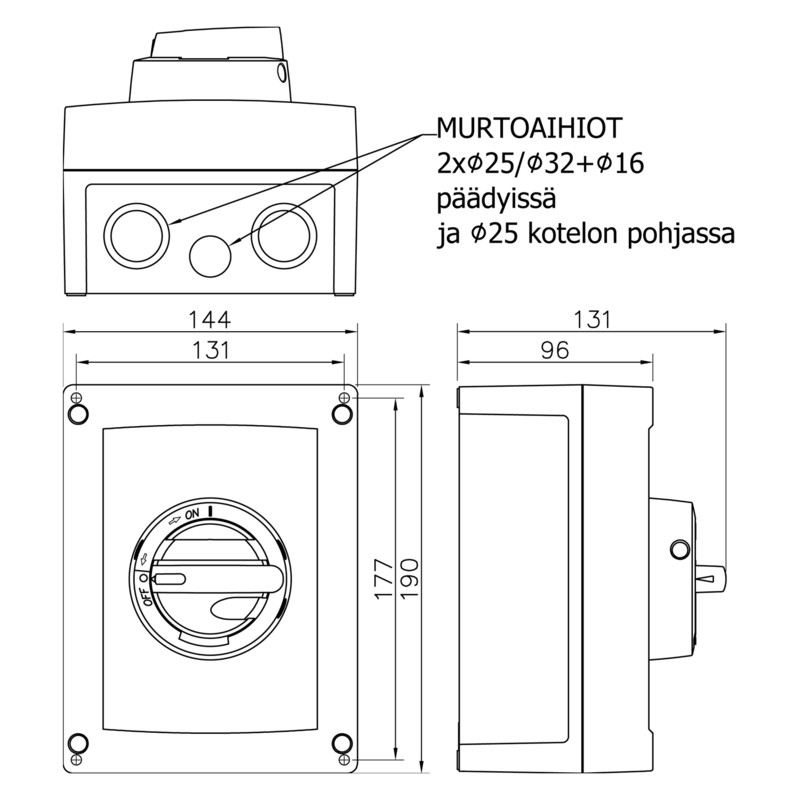

SAFETY SWITCH EMC KEM 332 NO 3x32A 400V 15kW
Product code
3662148
EMC-shielded plastic-enclosed 3-pole safety switch AC-23 @ 400 V: 32 A / 15 kW | AC-23 @ 690 V: 25 A / 22 kW. Includes switch: KU 340 (3609693), cable entry size to enclosure (Cu only): 1.5-16 mm², auxiliary contact: fixed 1NO auxiliary contact, cable entries: 2 x M32 (15-21 mm) EMC-shielded metal + 1 x M16 (5-10 mm) plastic. Installation directions for entries must be specified when ordering. Compatible auxiliary contact: 3610339 – 1NO or 3610340 – 1NC.
Suitable protective cover KSL 20 (3600595) available separately.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V32 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw0 kA
Rated operation power at AC-23, 400 V15 kW
Switching power at 400 V0 kW
Product codes
SAPDCC353
STK3662148
PLC3662148
GTIN/EAN6419410297131
Manufacturer part number29713
Vendor material number3662148
Basic information
Package measurements (L x W x H)190 x 144 x 131 mm
Package volume3.584 l
Package weight0.75 kg
Base uniteach
Package units1 / 12 / 198
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.59
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID8.44
