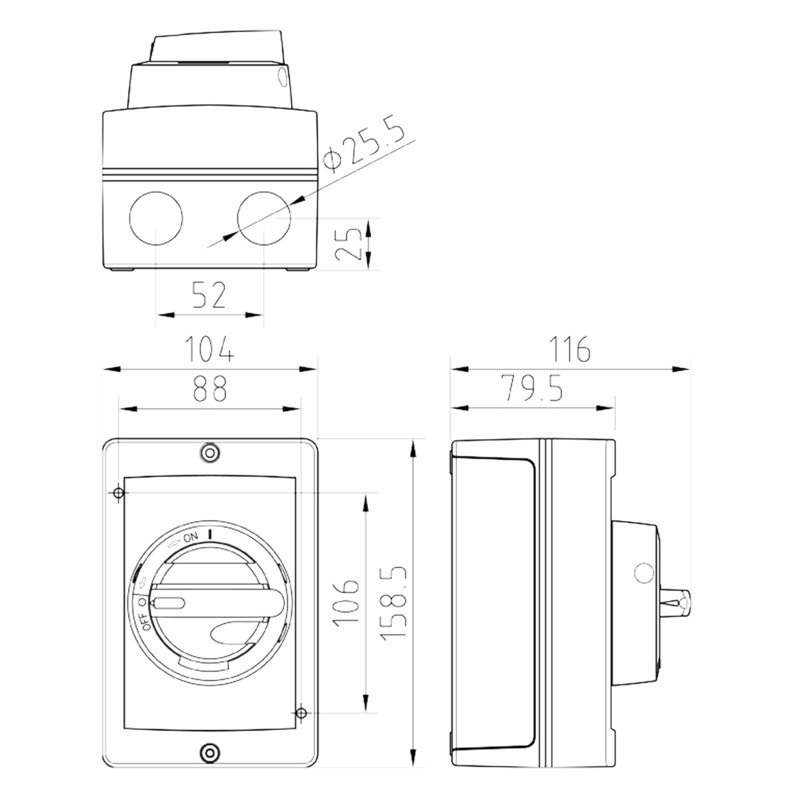

SAFETY SWITCH EMC KUA 325 3x25A 400V 1V 11kW
Product code
3600418
No product description available.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (low voltage) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400-690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-23, 400 V11 kW
Conditioned rated short-circuit current Iq50 kA
Number of poles3
Number of auxiliary contacts as normally closed contact0
Product codes
SAPABS236
STK3600418
PLC3600418
GTIN/EAN6410036004189
Manufacturer part number31048
Vendor material number3600418
Basic information
Package measurements (L x W x H)185 x 100 x 115 mm
Package volume2.128 l
Package weight1.02 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
