SAFETY SWITCH EMC KUA 363 3x63A 400V 1V 30kW
Product code
3600428
Technical specifications
- EMC shielded
- aluminum housing
- IP66
- 3-pole
- AC-23 / 230 / 400 V / 63 A / 30 kW
- AC-23 / 690 V / 40 A / 37 kW
- Lockable twist
- Includes auxiliary contact 1NO+1NC

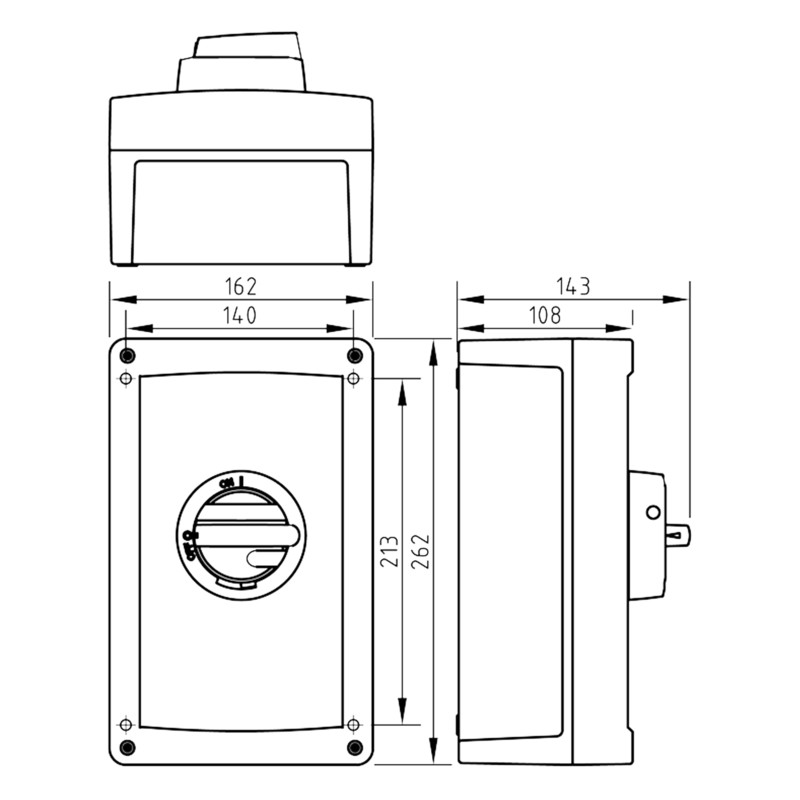

- L 162 x W 262 x H 108
Includes gland seals 2xM40EMC (19-28 mm) + M16 (5-10 mm).
Available separately- Auxiliary contact KU2.V 2NO+2NC (3600491)
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPABS237
STK3600428
PLC3600428
GTIN/EAN6419410305119
Manufacturer part number30511
Vendor material number3600428
Basic information
Package measurements (L x W x H)265 x 165 x 155 mm
Package volume6.777 l
Package weight2.896 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)17.405
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID13.46
