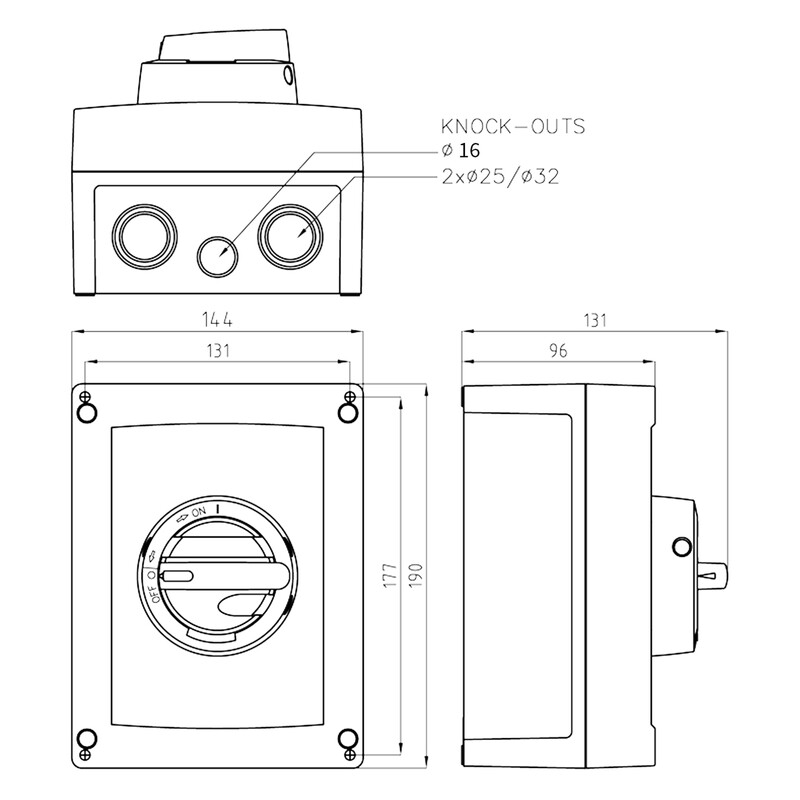

SAFETY SWITCH EMC KUM 332 3x32A 400V 1V 15kW
Product code
3603086
No product description available.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V32 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V15 kW
Switching power at 400 V0 kW
Product codes
SAPADJ454
STK3603086
PLC3603086
GTIN/EAN6419410301548
Manufacturer part number30154
Vendor material number3603086
Basic information
Package measurements (L x W x H)185 x 140 x 130 mm
Package volume3.367 l
Package weight0.92 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
