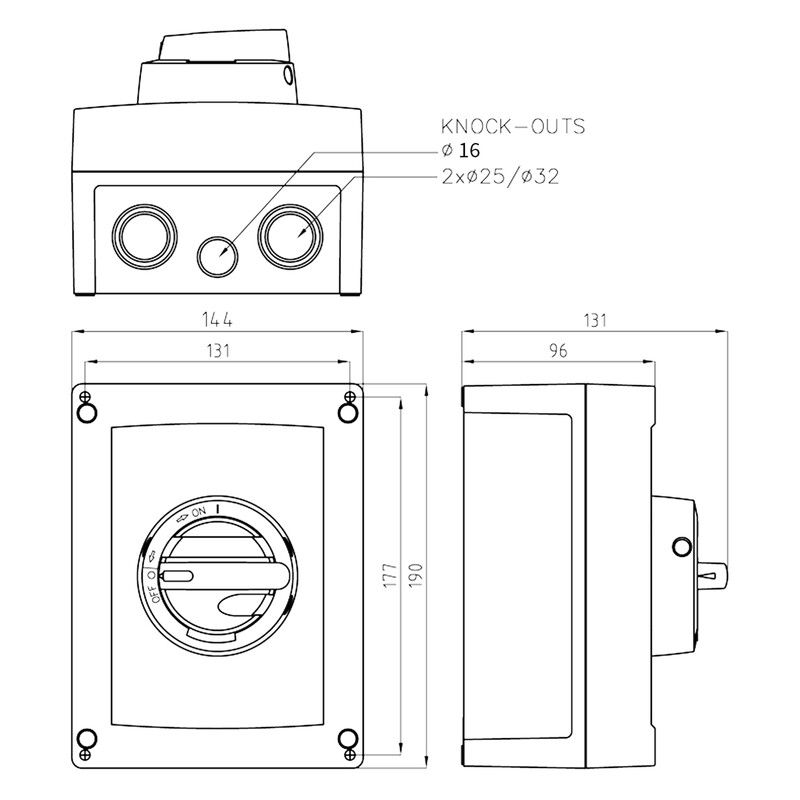

SAFETY SWITCH EMC KUM 363 3x63A 400V 1V 30kW
Product code
3603088
EMC-protected polycarbonate enclosure IP66
EMC-Safety switch (IP66)
3-pole / 3-Poles
AC-23/400V / 63A / 30kW
AC-23/690V / 40A / 37kW
Polycarbonate
Padlockable
Built-in auxiliary contact KU1.V (1NO+1NC) (3600490)
Includes auxiliary contact KU1.V (1NO/1NC)
Includes cable glands:
2xM32EMC (15-21mm) + M16(5-10mm)
Available separately:
Aux.contact:
KU2.V (2NO+2NC) (3600491)
Rain protector:
KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
EMC-Safety switch (IP66)
3-pole / 3-Poles
AC-23/400V / 63A / 30kW
AC-23/690V / 40A / 37kW
Polycarbonate
Padlockable
Built-in auxiliary contact KU1.V (1NO+1NC) (3600490)
Includes auxiliary contact KU1.V (1NO/1NC)
Includes cable glands:
2xM32EMC (15-21mm) + M16(5-10mm)
Available separately:
Aux.contact:
KU2.V (2NO+2NC) (3600491)
Rain protector:
KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPADJ455
STK3603088
PLC3603088
GTIN/EAN6419410301562
Manufacturer part number30156
Vendor material number3603088
Basic information
Package measurements (L x W x H)188 x 142 x 91 mm
Package volume2.429 l
Package weight0.94 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.2134
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID32.01
