SAFETY SWITCH EMC KUM 380 3x80A 400V 1V 45kW
Product code
3603089
EMC-protected polycarbonate enclosure IP66
EMC-Safety switch (IP66)
3-pole / 3-Poles
AC-23/400V / 80A / 45kW
AC-23/690V / 63A / 55kW

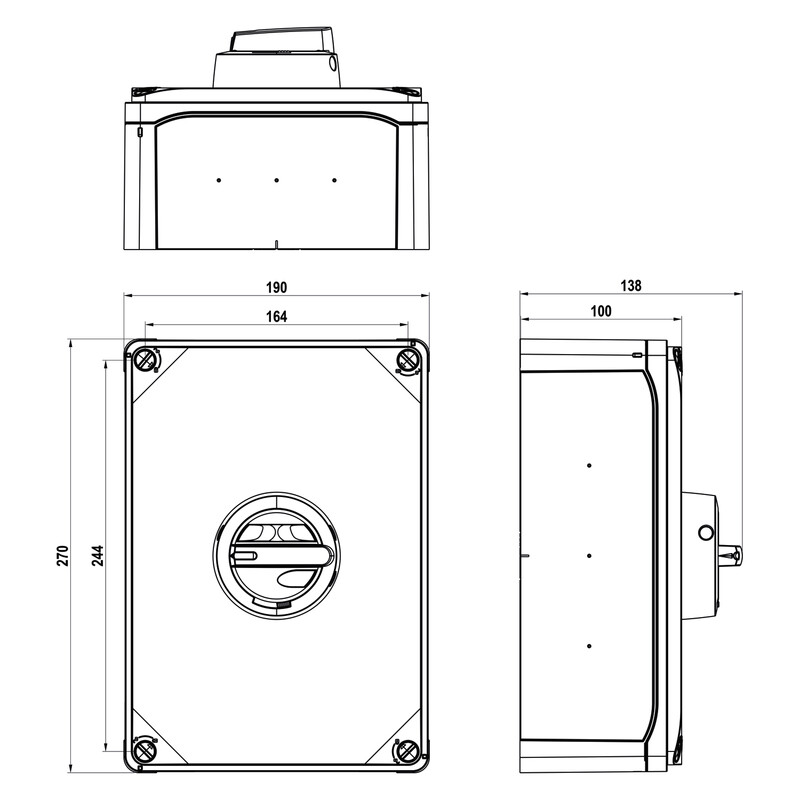

Polycarbonate enclosure type U4 (L180xW255xH139)
Padlockable
Includes aux.contact:
1.V160KU (3600819) (1NO + 1NC)
Includes aux.contact: 1.V160KU (1NO + 1NC)
Cable information and directions must be specified when ordering.
Standard: 2xM40+M16
(Note! Max. 2 x M50 + M16 with gland seals)
Available separately:
Aux.contact:
2.V160KU (3600825) 2NO + 2NC
This product description is an automated translation of the original Finnish description.
EMC-Safety switch (IP66)
3-pole / 3-Poles
AC-23/400V / 80A / 45kW
AC-23/690V / 63A / 55kW
Polycarbonate enclosure type U4 (L180xW255xH139)
Padlockable
Includes aux.contact:
1.V160KU (3600819) (1NO + 1NC)
Includes aux.contact: 1.V160KU (1NO + 1NC)
Cable information and directions must be specified when ordering.
Standard: 2xM40+M16
(Note! Max. 2 x M50 + M16 with gland seals)
Available separately:
Aux.contact:
2.V160KU (3600825) 2NO + 2NC
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu125 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V125 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V45 kW
Switching power at 400 V0 kW
Product codes
SAPCFG685
STK3603089
PLC3603089
GTIN/EAN6419410360224
Manufacturer part number36022
Vendor material number3603089
Basic information
Package measurements (L x W x H)260 x 140 x 132 mm
Package volume4.805 l
Package weight1.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)14.118
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID31.35
