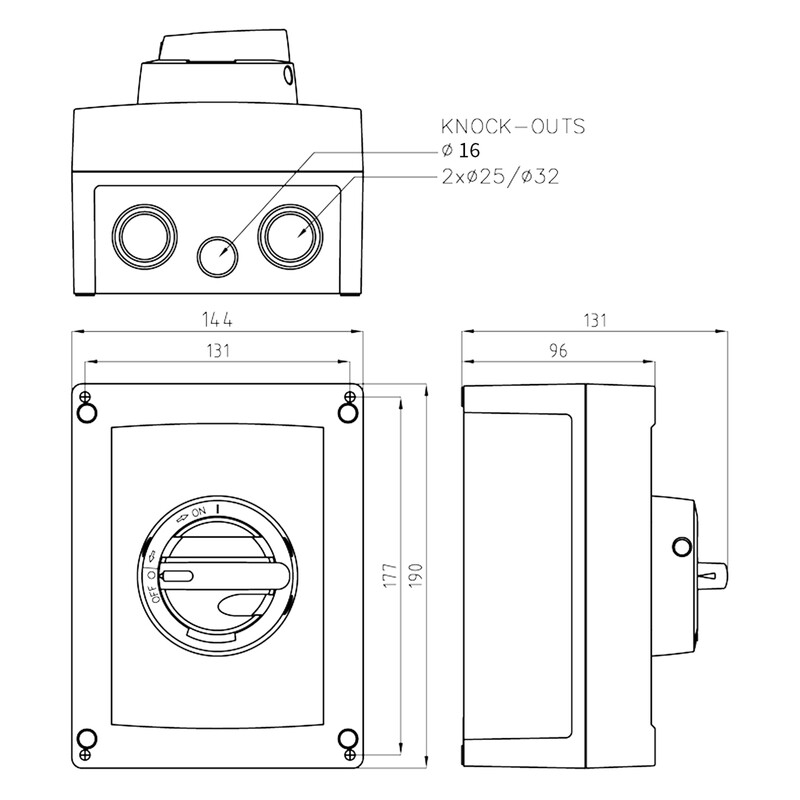

SAFETY SWITCH EMC KUM 616 6x20A 400V 1V 7,5kW
Product code
3600329
EMC-protected polycarbonate enclosure IP66
EMC-Safety switch (IP66)
6-pole / 6-Poles
AC-23/400V / 20A / 7.5kW
AC-23/690V / 20A / 15kW
Padlockable
Includes auxiliary contact: (1NO/1NC)
Includes cable Glands:
4xM25EMC (11-17mm) + M16(5-10mm)
Available separately:
Aux.contact:
KU2.V (2NO+2NC) (3600491)
Rain protector:
KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
EMC-Safety switch (IP66)
6-pole / 6-Poles
AC-23/400V / 20A / 7.5kW
AC-23/690V / 20A / 15kW
Padlockable
Includes auxiliary contact: (1NO/1NC)
Includes cable Glands:
4xM25EMC (11-17mm) + M16(5-10mm)
Available separately:
Aux.contact:
KU2.V (2NO+2NC) (3600491)
Rain protector:
KSL 20 (3600595) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V20 A
Rated permanent current at AC-21, 400 V40 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V0 kW
Product codes
SAPCIF566
STK3600329
PLC3600329
GTIN/EAN6419410363676
Manufacturer part number36367
Vendor material number3600329
Basic information
Package measurements (L x W x H)190 x 144 x 96 mm
Package volume2.627 l
Package weight0.96 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
