SAFETY SWITCH ISF UL 3X16A 480V 7,5HP 600V 10HP
Product code
3662557

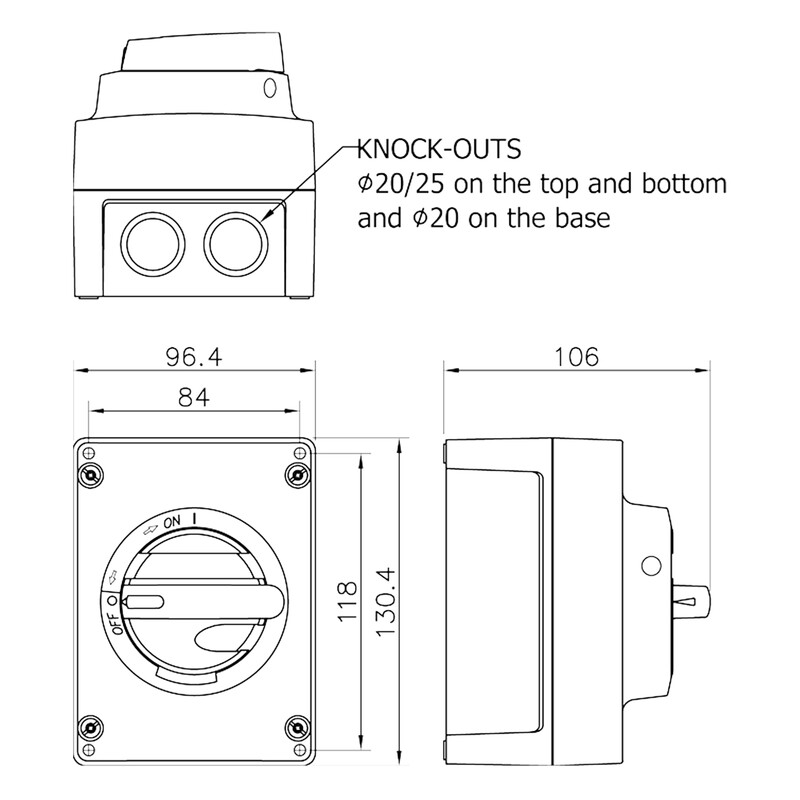

ISF 316UL M2: UL-listed; Plastic enclosure, L96.4 x W130.4 x H106 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400 - 690 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated short-time withstand current lcw0.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V7.5 kW
Conditioned rated short-circuit current Iq50 kA
Product codes
SAPDFK982
STK3662557
PLC3662557
GTIN/EAN6419410294840
Manufacturer part number29484
Vendor material number3662557
Basic information
Package measurements (L x W x H)106 x 96 x 130 mm
Package volume1.323 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.313
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID25.52
