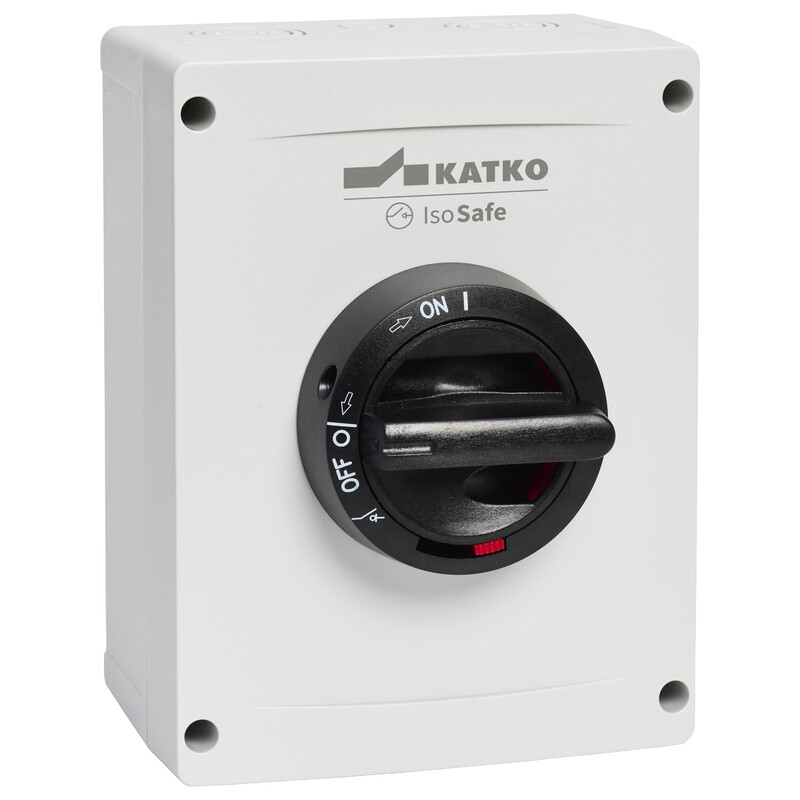

SAFETY SWITCH ISF UL 3X40A 480V 15HP 600V 20HP
Product code
3662551

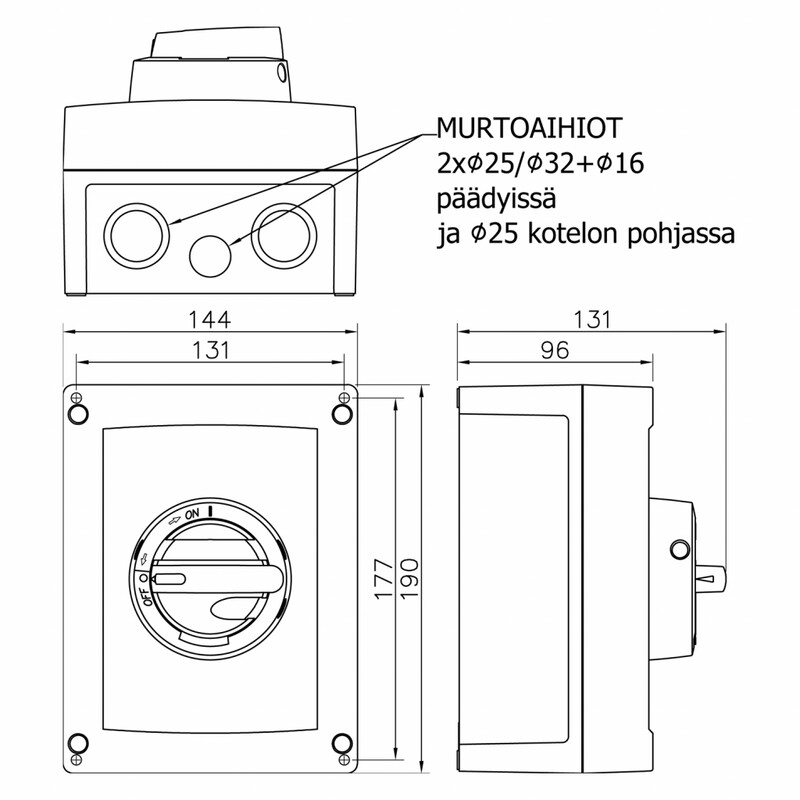

ISF 340UL M3: UL-listed; Plastic housing, L144 x W190.4 x H96 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400 - 690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V40 A
Rated permanent current at AC-21, 400 V40 A
Rated short-time withstand current lcw0.7 kA
Rated operation power at AC-23, 400 V22 kW
Switching power at 400 V22 kW
Conditioned rated short-circuit current Iq25 kA
Product codes
SAPDFK981
STK3662551
PLC3662551
GTIN/EAN6419410294772
Manufacturer part number29477
Vendor material number3662551
Basic information
Package measurements (L x W x H)96 x 144 x 190 mm
Package volume2.627 l
Package weight0.75 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.9695
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID14.48
