SAFETY SWITCH KEA 380FR 3x63A 400V 30kW
Product code
3602839
Fire-rated safety switches (IP66)
Fire-rated safety switch / Firerated safety switch (IP66)
200 degrees / 3h
Without aux. contact
Also available model 300 degrees / 2h:
Type KEA 380U FR3 S-no. (3600660) Without aux.contact
3-pole / 3-Poles
AC-23 / 400V / 3x63A / 30kW
AC-23 / 690V / 3x40A / 37kW
Aluminium enclosure
Available separately:
Aux. contact:
KU1.V (3600490) 1NO + 1NC
KU2.V (3600491) 2NO + 2NC
Also available with changeover aux. contact KU1.V (S-no. 3609209)
Padlockable
Good UV protection
Good protection against various chemicals
Excellent for harsh weather conditions
Contain gland seals:
16A - 40A = 2xM25 (if aux. contact + M16) enclosure A2 = 104x159x80

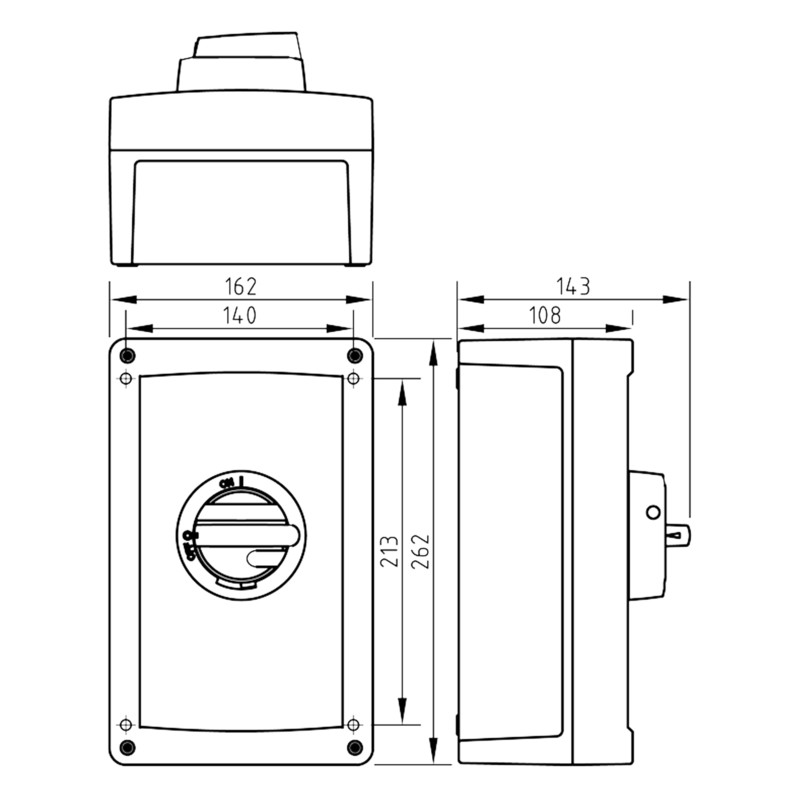

63A = 2xM40 (if aux. contact + M16) enclosure A3 = 162x262x108
80A = 2xM40 (if aux. contact + M16) enclosure A3 = 162x262x108
Larger sizes require cable data enclosure A4 = 300x422x170 and A5 = 400x522+170
EMC version: KEA 380U FR1.V EMC (3600605)
Includes changeover aux. contact and EMC gland seals This product description is an automated translation of the original Finnish description.
Fire-rated safety switch / Firerated safety switch (IP66)
200 degrees / 3h
Without aux. contact
Also available model 300 degrees / 2h:
Type KEA 380U FR3 S-no. (3600660) Without aux.contact
3-pole / 3-Poles
AC-23 / 400V / 3x63A / 30kW
AC-23 / 690V / 3x40A / 37kW
Aluminium enclosure
Available separately:
Aux. contact:
KU1.V (3600490) 1NO + 1NC
KU2.V (3600491) 2NO + 2NC
Also available with changeover aux. contact KU1.V (S-no. 3609209)
Padlockable
Good UV protection
Good protection against various chemicals
Excellent for harsh weather conditions
Contain gland seals:
16A - 40A = 2xM25 (if aux. contact + M16) enclosure A2 = 104x159x80
63A = 2xM40 (if aux. contact + M16) enclosure A3 = 162x262x108
80A = 2xM40 (if aux. contact + M16) enclosure A3 = 162x262x108
Larger sizes require cable data enclosure A4 = 300x422x170 and A5 = 400x522+170
EMC version: KEA 380U FR1.V EMC (3600605)
Includes changeover aux. contact and EMC gland seals This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400-690 V
Rated permanent current Iu160 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V160 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw5 kA
Rated operation power at AC-23, 400 V45 kW
Switching power at 400 V0 kW
Product codes
SAPCDG636
STK3602839
PLC3602839
GTIN/EAN6419410202777
Manufacturer part number20277
Vendor material number3602839
Basic information
Package measurements (L x W x H)265 x 165 x 145 mm
Package volume6.34 l
Package weight2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)15.44
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID25.05
