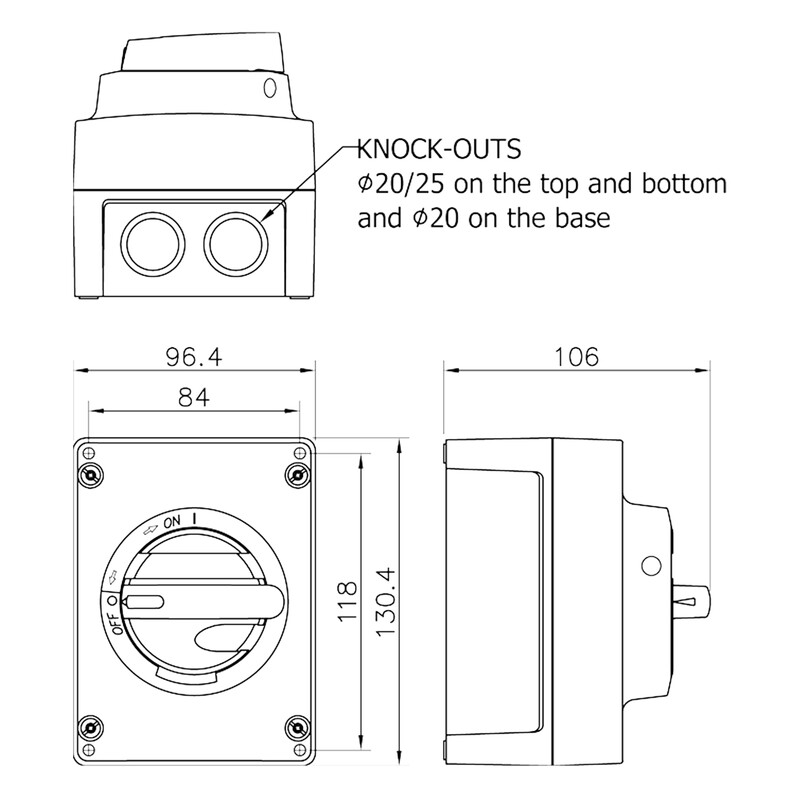

SAFETY SWITCH KEM 116 1x16A 400V 7,5kW
Product code
3662231
Plastic-enclosed 1-pole safety switch AC-23 @ 400V: 16A | AC-23 @ 240V: 16A. Includes switch: KU 116. Cable size for terminal (Cu only) 1.5-16 mm2. Cable entries 2 x M25 (11-17 mm) plastic.
Available separately: protective cover KSL 10 (3600594). Suitable auxiliary contact: 3610339 – 1NO or 3610340 – 1NC. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage240 - 400 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw0 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V0 kW
Product codes
SAPDCC359
STK3662231
PLC3662231
GTIN/EAN6419410295137
Manufacturer part number29513
Vendor material number3662231
Basic information
Package measurements (L x W x H)106 x 97 x 131 mm
Package volume1.347 l
Package weight0.38 kg
Base uniteach
Package units1 / 66 / 528
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
