SAFETY SWITCH KEM 310 3x10A 400V 5,5kW
Product code
3662238

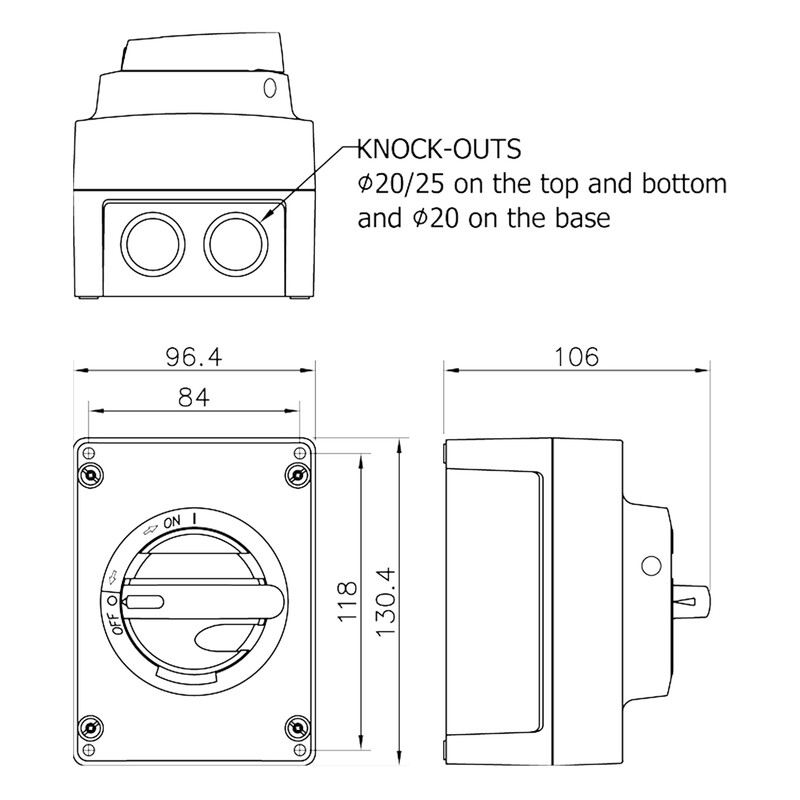

Plastic-enclosed 3-pole safety switch AC-23 @ 400V: 10A / 5.5kW | AC-23 @ 690V: 10A / 7.5kW. Includes switch: KU 310. Cable size for terminal box (Cu only) 1.5-16 mm2. Cable entries 2 x M20 (6-12 mm) plastic.
Protective cover KSL 10 (3600594) available separately. Suitable auxiliary contact: 3610339 – 1NO or 3610340 – 1NC.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu10 A
Rated permanent current at AC-23, 400 V10 A
Rated permanent current at AC-21, 400 V0 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw0 kA
Rated operation power at AC-23, 400 V5.5 kW
Switching power at 400 V0 kW
Product codes
SAPDCC360
STK3662238
PLC3662238
GTIN/EAN6419410296820
Manufacturer part number29682
Vendor material number3662238
Basic information
Package measurements (L x W x H)106 x 97 x 131 mm
Package volume1.347 l
Package weight0.4 kg
Base uniteach
Package units1 / 10 / 528
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.028
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID14.48
