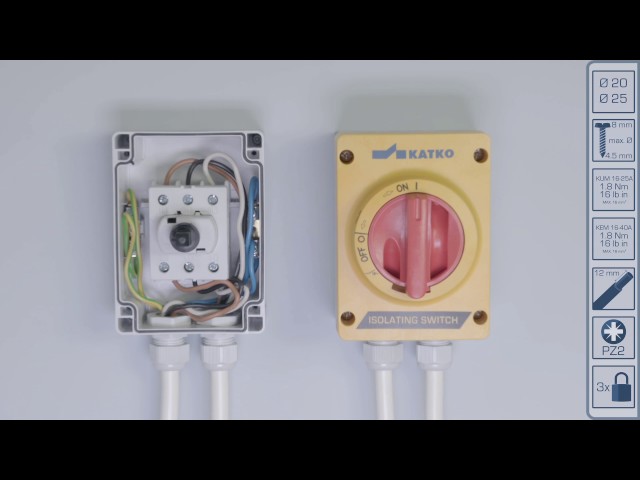

SAFETY SWITCH KEM 316 3x16A 400V 7,5kW
Product code
3620225
Plastic-enclosed 3-pole safety switch AC-23 @ 400V: 16A / 7.5kW | AC-23 @ 690V: 16A / 11kW. Includes switch: KU 416 (3609694). Cable size for terminal box (copper only): 1.5-16 mm2. Cable entries: 2 x M25 (11-17 mm) plastic. Compatible auxiliary contact: 3610339 – 1NO or 3610340 – 1NC.
Protective cover KSL 10 (3600594) available separately.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V0 kW
Product codes
SAPDCC311
STK3620225
PLC3620225
GTIN/EAN6419410295199
Manufacturer part number29519
Vendor material number3620225
Basic information

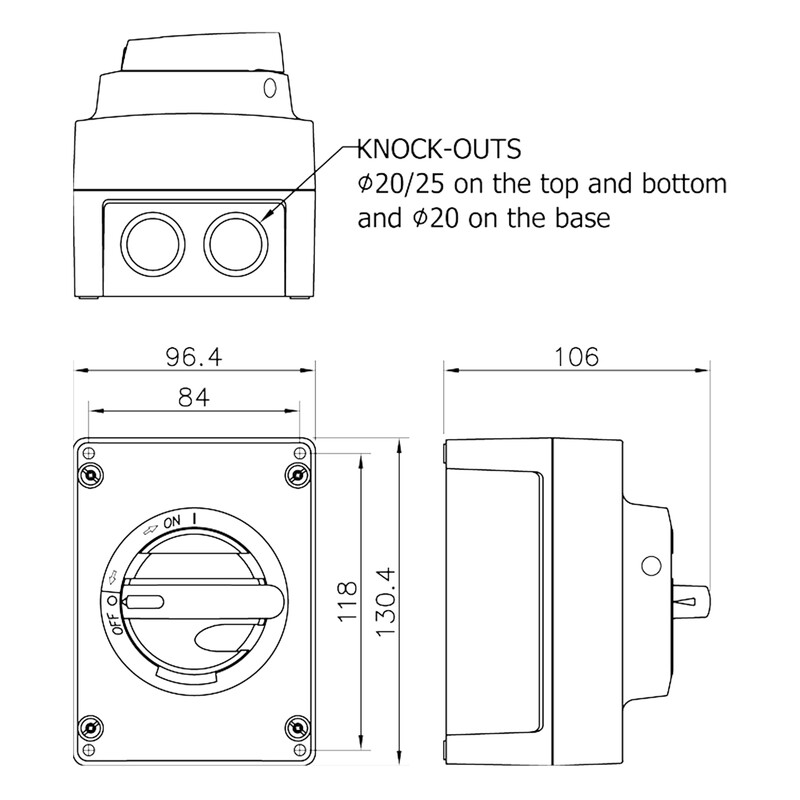

Package measurements (L x W x H)106 x 97 x 131 mm
Package volume1.347 l
Package weight0.42 kg
Base uniteach
Package units1 / 24 / 624
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
