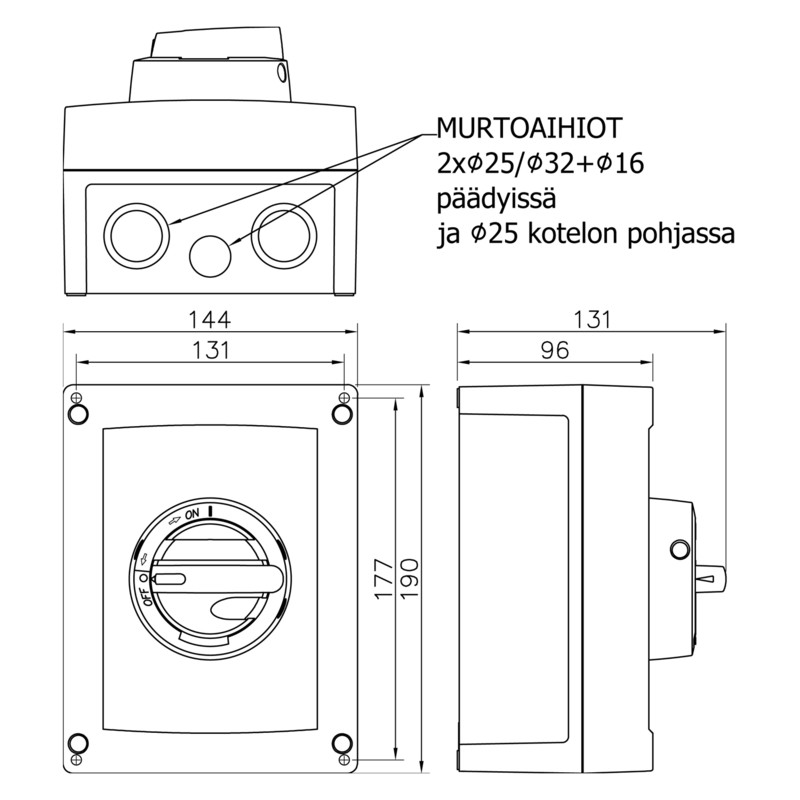

SAFETY SWITCH KEM 316 NO 3x16A 400V 7,5kW
Product code
3620243
Plastic-enclosed 3-pole safety switch AC-23 @ 400V: 16A / 7.5kW | AC-23 @ 690V: 16A / 11kW. Includes switch: KU 316 (3609687). Cable size for terminal box (Cu only): 1.5-16 mm2. Auxiliary contact: fixed 1NO auxiliary contact. Cable entries: 2 x M25 (11-17 mm) plastic + 1 x M16 (5-10 mm) plastic. Compatible auxiliary contact: 3610339 – 1NO or 3610340 – 1NC.
Protective cover KSL 20 (3600595) available separately.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V0 kW
Product codes
SAPDCC322
STK3620243
PLC3620243
GTIN/EAN6419410296073
Manufacturer part number29607
Vendor material number3620243
Basic information
Package measurements (L x W x H)131 x 144 x 190 mm
Package volume3.584 l
Package weight1.3 kg
Base uniteach
Package units1 / 12 / 198
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.78
GWP, uniteach
Source for GWP dataco2data.fi
