SAFETY SWITCH KEM 325 1NO 3x25A 400V 11kW
Product code
3662128

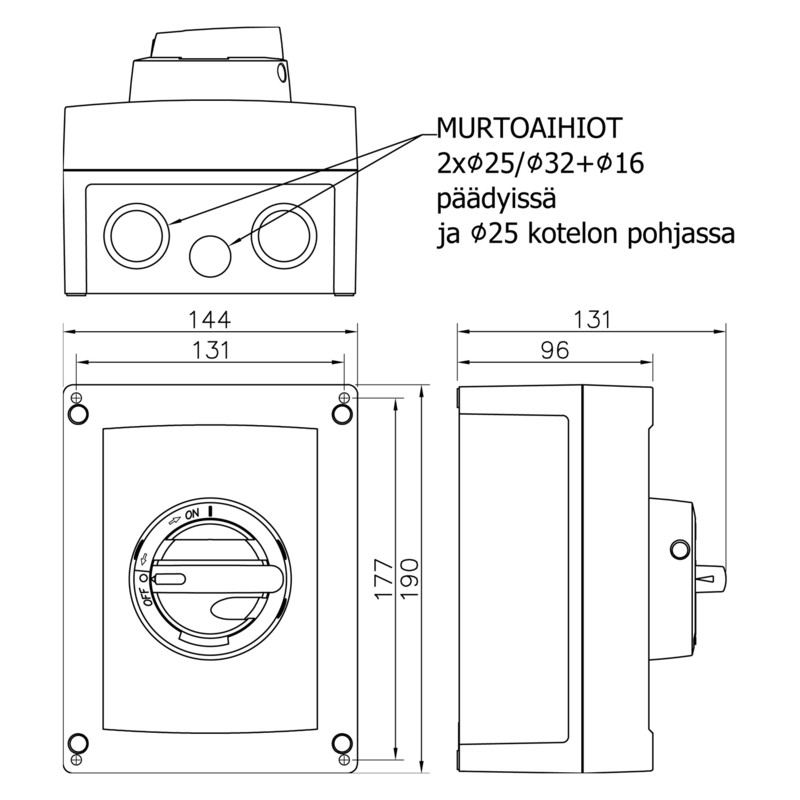

Plastic-enclosed 3-pole safety switch AC-23 @ 400 V: 25 A / 11 kW | AC-23 @ 690 V: 25 A / 22 kW. Includes switch: KU 325 (3609692), cable size for terminal enclosure (Cu only): 1.5-16 mm², auxiliary contact: 1NO40KU (3610339), cable entries: 2 x M25 (11-17 mm) plastic + 1 x M16 (5-10 mm) plastic. Compatible auxiliary contact: 3610339 – 1NO or 3610340 – 1NC.
Available separately as protective cover KSL 20 (3600595). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V0 kW
Product codes
SAPDCC346
STK3662128
PLC3662128
GTIN/EAN6419410305799
Manufacturer part number30579
Vendor material number3662128
Basic information
Package measurements (L x W x H)190 x 144 x 131 mm
Package volume3.584 l
Package weight0.75 kg
Base uniteach
Package units1 / 12 / 198
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
