SAFETY SWITCH KEM 325 3x25A 400V 11kW
Product code
3662132

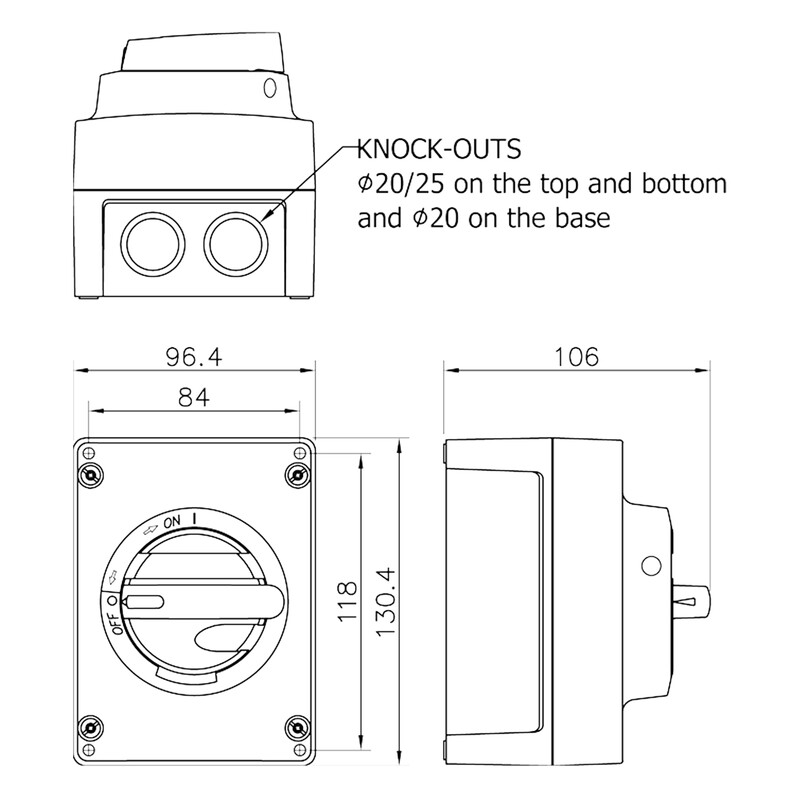

Plastic-enclosed 3-pole photovoltaic isolation switch AC-23 @ 400V: 25A / 11kW | AC-23 @ 690V: 25A / 22kW. Includes switch: KU 325 (3609692). Cable size to terminal (Cu only) 1.5-16 mm². Cable entries 2 x M25 (11-17 mm) plastic.
Available separately as protective cover KSL 10 (3600594). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V0 kW
Product codes
SAPDCC348
STK3662132
PLC3662132
GTIN/EAN6419410277089
Manufacturer part number27708
Vendor material number3662132
Basic information
Package measurements (L x W x H)106 x 97 x 131 mm
Package volume1.347 l
Package weight0.4 kg
Base uniteach
Package units1 / 66 / 528
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1
GWP, uniteach
Source for GWP dataco2data.fi
