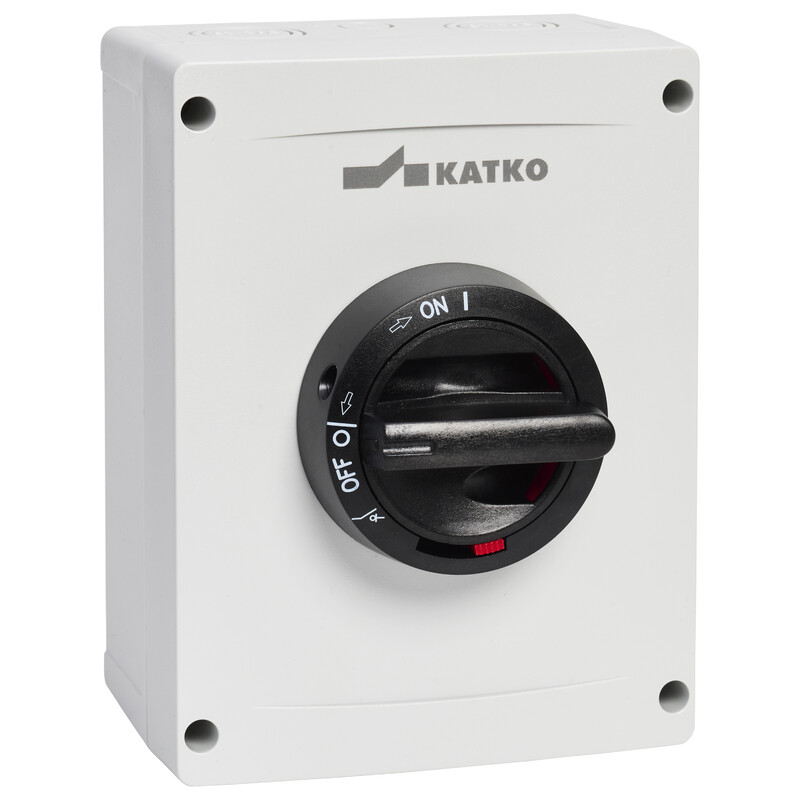

SAFETY SWITCH KEM 325 NO 3x25A 400V 11kW
Product code
3620244
Plastic-enclosed 3-pole safety switch AC-23 @ 400V: 25A / 11kW | AC-23 @ 690V: 25A / 22kW. Includes switch: KU 325 (3609692). Cable size for terminal box (Cu only): 1.5-16 mm2. Auxiliary contact: fixed 1NO auxiliary contact. Cable entries: 2 x M25 (11-17 mm) plastic + 1 x M16 (5-10 mm) plastic. Compatible auxiliary contact: 3610339 – 1NO or 3610340 – 1NC.
Available separately as protective cover KSL 20 (3600595). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V11 kW
Switching power at 400 V0 kW
Product codes
SAPDCC323
STK3620244
PLC3620244
GTIN/EAN6419410296080
Manufacturer part number29608
Vendor material number3620244
Basic information
Package measurements (L x W x H)131 x 144 x 190 mm
Package volume3.584 l
Package weight1.3 kg
Base uniteach
Package units1 / 12 / 198
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
