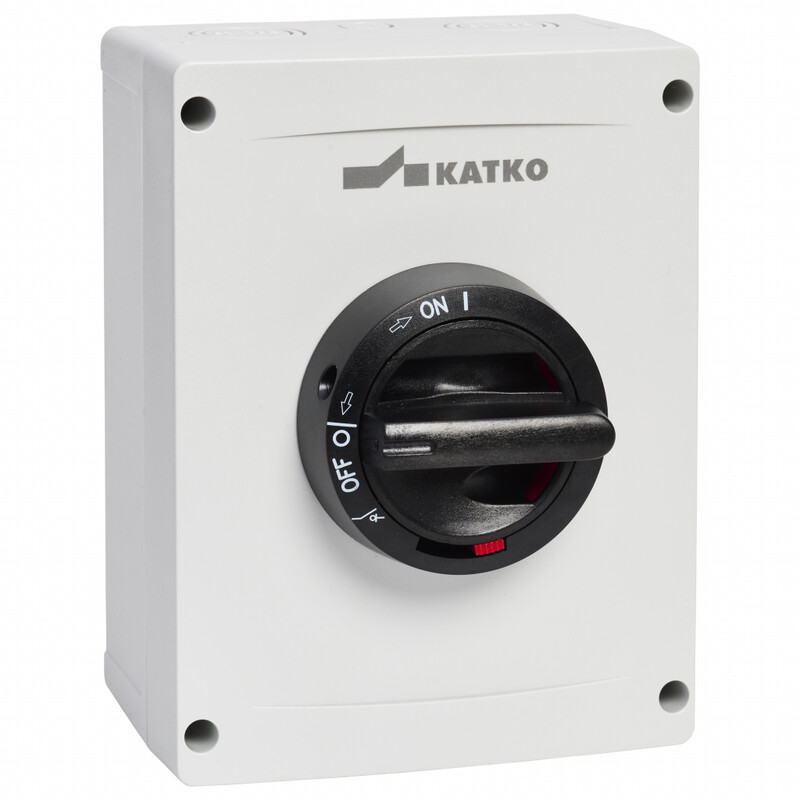

SAFETY SWITCH KEM 3X80A 480V 30HP 600V 40HP
Product code
3662572

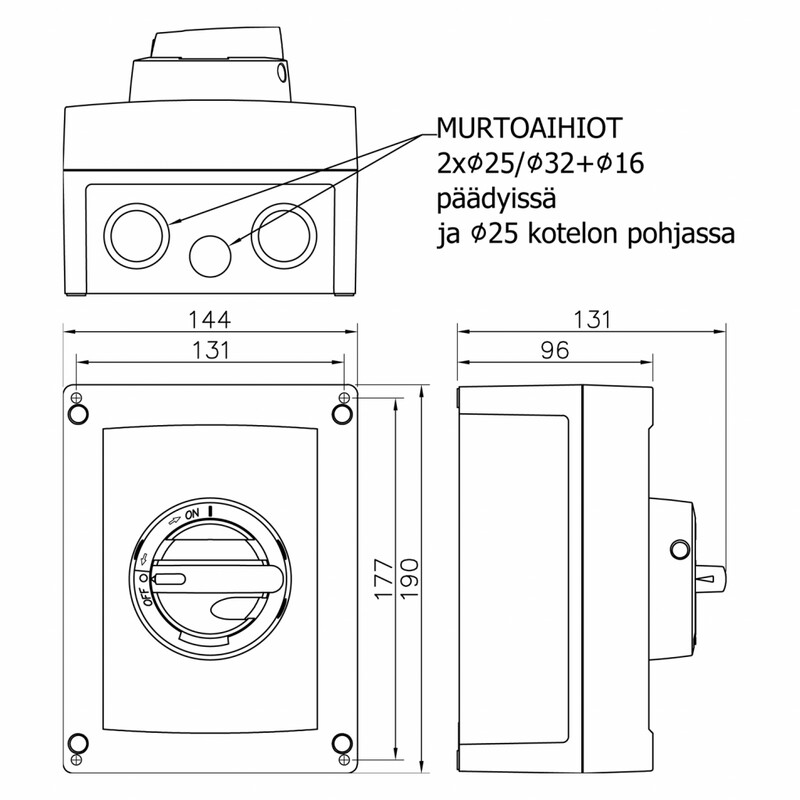

KEM 380UL M3: UL-listed, 3-pole, polycarbonate enclosure; L144 x W190 x D96 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400 - 690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V100 A
Rated permanent current at AC-21, 400 V160 A
Rated short-time withstand current lcw5.1 kA
Rated operation power at AC-23, 400 V45 kW
Switching power at 400 V45 kW
Conditioned rated short-circuit current Iq50 kA
Product codes
SAPDFK984
STK3662572
PLC3662572
GTIN/EAN6419410351338
Manufacturer part number35133
Vendor material number3662572
Basic information
Package measurements (L x W x H)96 x 144 x 190 mm
Package volume2.627 l
Package weight0.77 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1078
GWP, uniteach
Source for GWP dataco2data.fi
