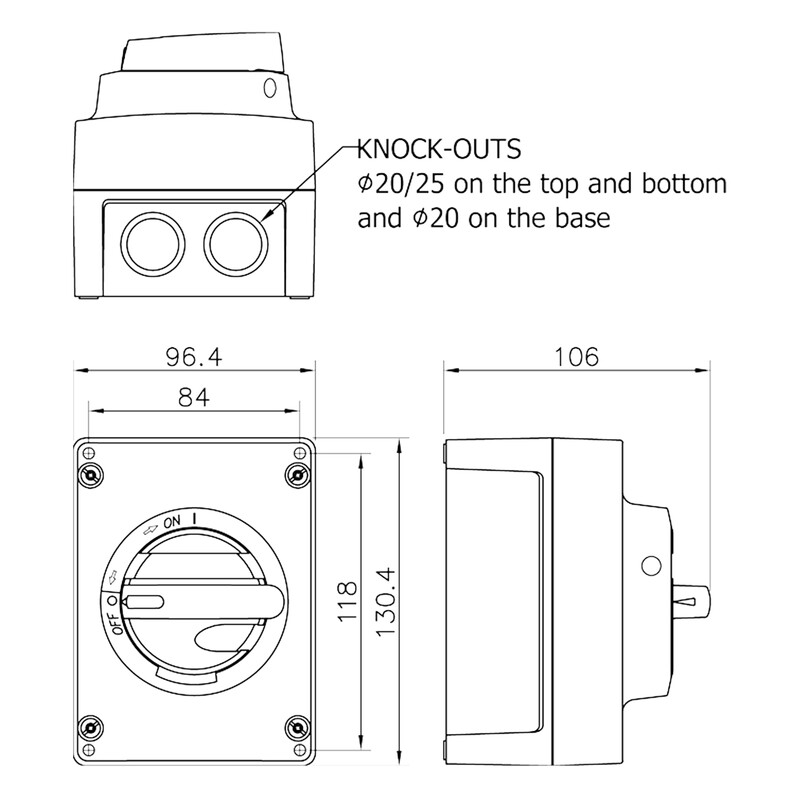

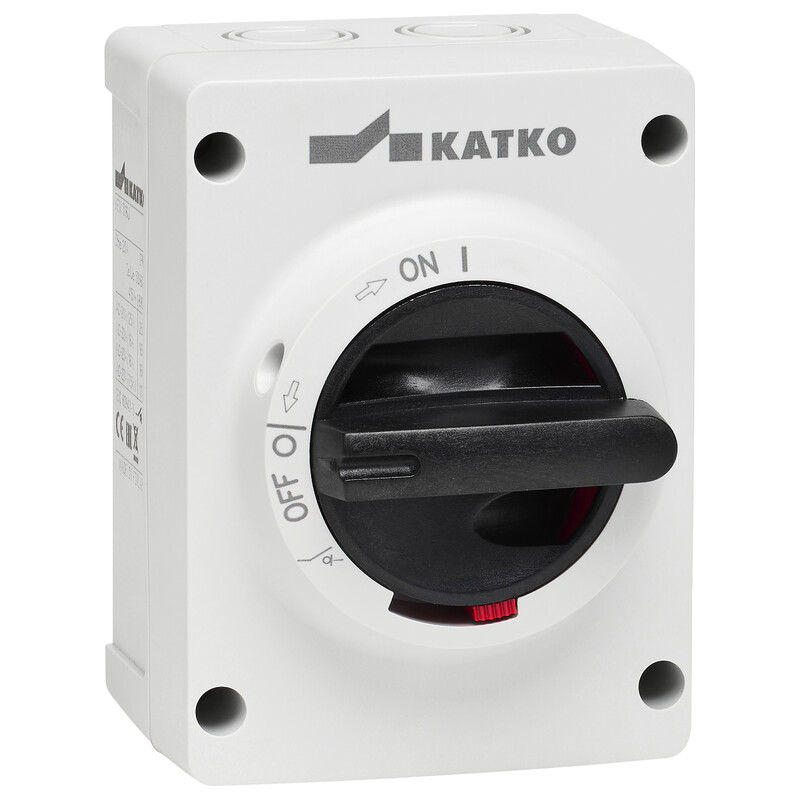

SAFETY SWITCH KEM 416 4x16A 400V 7,5kW
Product code
3662158
Plastic-enclosed 4-pole photovoltaic isolating switch AC-23 @ 400 V: 16 A / 7.5 kW | AC-23 @ 690 V: 16 A / 11 kW. Includes switch: KU 416 (3609694), cable size for terminal enclosure (Cu only): 1.5-16 mm², cable entries: 2 x M25 (11-17 mm) plastic.
Protective cover KSL 10 (3600594) available separately. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Switching power at 400 V0 kW
Product codes
SAPDCC354
STK3662158
PLC3662158
GTIN/EAN6419410277058
Manufacturer part number27705
Vendor material number3662158
Basic information
Package measurements (L x W x H)106 x 97 x 131 mm
Package volume1.347 l
Package weight0.45 kg
Base uniteach
Package units1 / 24 / 528
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.404
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID8.44
