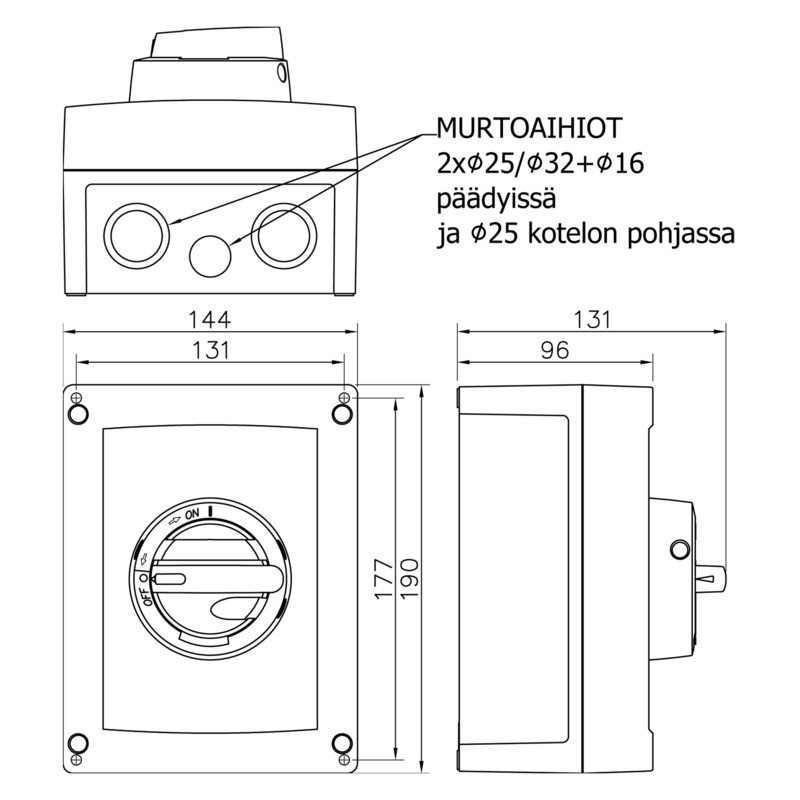

SAFETY SWITCH KEM 432 1NO 4x32A 400V 15kW
Product code
3662161
Plastic-enclosed 4-pole safety switch AC-23 @ 400 V: 32 A / 15 kW | AC-23 @ 690 V: 25 A / 22 kW. Includes switch: KU 440 (3609696), cable entry size to enclosure (Cu only): 1.5-16 mm2, auxiliary contact: 1NO40KU (3610339), cable entries: 2 x M32 (15-21 mm) plastic + 1 x M16 (5-10 mm) plastic. Suitable auxiliary contact: 3610339 – 1NO or 3610340 – 1NC.
Protective cover KSL 20 (3600595) available separately.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V32 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw0 kA
Rated operation power at AC-23, 400 V15 kW
Switching power at 400 V0 kW
Product codes
SAPDCC356
STK3662161
PLC3662161
GTIN/EAN6419410297353
Manufacturer part number29735
Vendor material number3662161
Basic information
Package measurements (L x W x H)190 x 144 x 131 mm
Package volume3.584 l
Package weight0.75 kg
Base uniteach
Package units1 / 12 / 198
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.84
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID11.03
