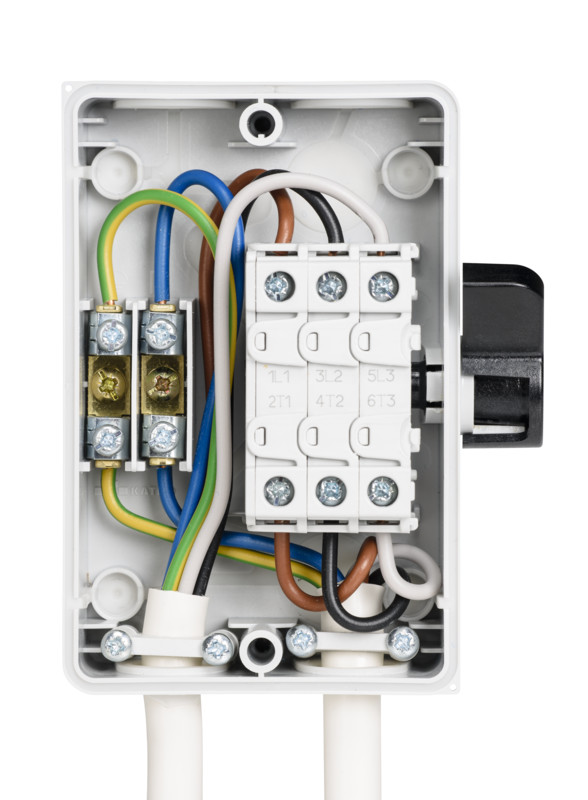

SAFETY SWITCH KSM 225AECG 2x25A 400V 11kW
Product code
3600963
Polycarbonate enclosure, side-mountable IP67

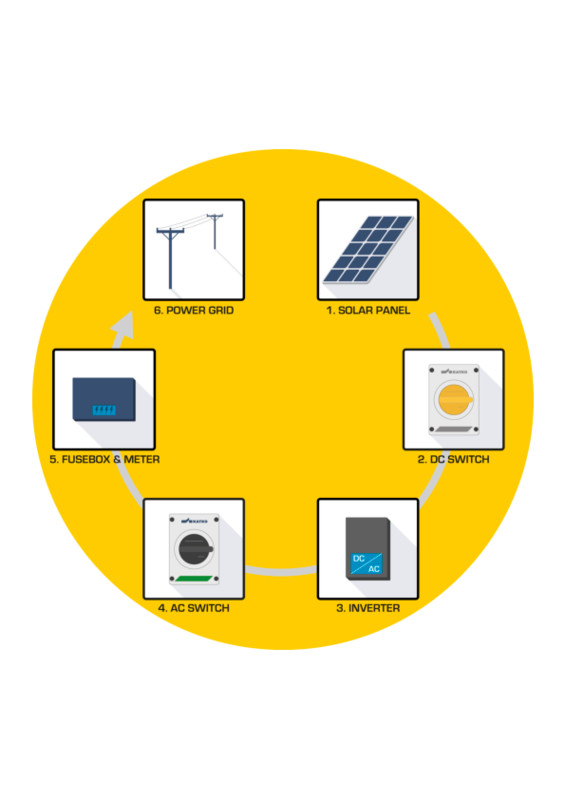

Marking: SOLAR POWER SYSTEM ISOLATOR
Good resistance against various chemicals / Self-extinguishing material
Safety switch
2-pole
AC-23 / 2x25A / 11kW / 400V
Lockable knob

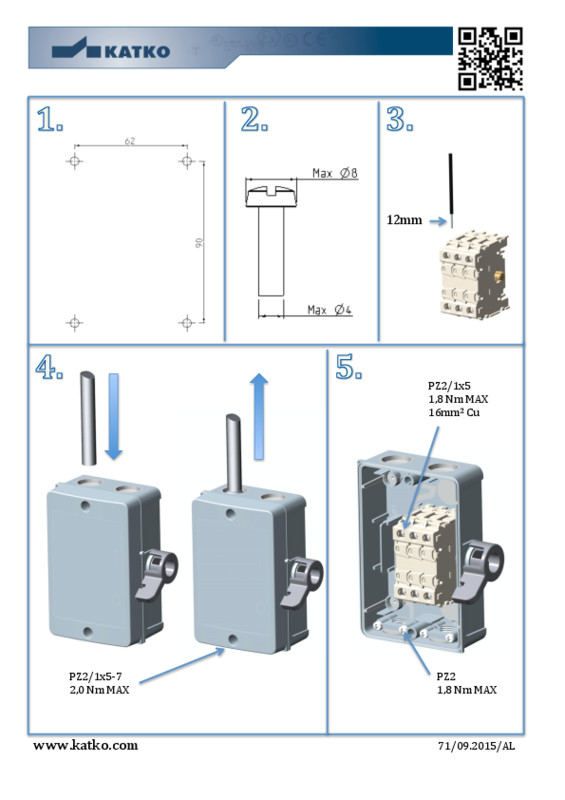

Includes 2 pieces M20 gland seals
Standard: membrane seals and 2 pieces drain plugs
2 x 20mm
2 x 15mm (at bottom)
Optional accessories:
Cover sealable
Knob sealable in ON position
This product description is an automated translation of the original Finnish description.
Marking: SOLAR POWER SYSTEM ISOLATOR
Good resistance against various chemicals / Self-extinguishing material
Safety switch
2-pole
AC-23 / 2x25A / 11kW / 400V
Lockable knob
Includes 2 pieces M20 gland seals
Standard: membrane seals and 2 pieces drain plugs
2 x 20mm
2 x 15mm (at bottom)
Optional accessories:
Cover sealable
Knob sealable in ON position
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC25 V
Rated operating voltage230-415 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-23, 400 V11 kW
Number of poles2
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Product codes
SAPCGB206
STK3600963
PLC3600963
GTIN/EAN6419410328774
Manufacturer part number32877
Vendor material number3600963
Basic information
Package measurements (L x W x H)128 x 100 x 55.6 mm
Package volume0.712 l
Package weight0.21 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4179
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID14.83
