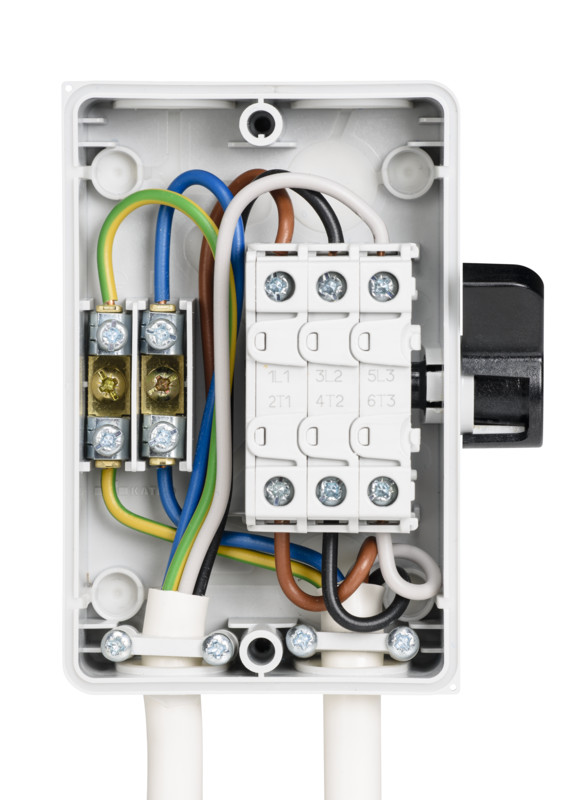

SAFETY SWITCH KSM 316 3x16A 400V S 7,5kW
Product code
3600369
Polycarbonate housing, side-mountable IP67
Good resistance to various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23 / 16A / 7.5kW / 400V
Lockable knob
Standard auxiliary contact 1S
Standard membrane seals:
2 x 20mm (Up and Down)
2 x 15mm (Bottom)
Standard vacuum breakers: 2 pcs
Cover sealable
Knob sealable in ON position
You can also order the same product with gland seals 2 x M20
KSM 316US CG (3600833) This product description is an automated translation of the original Finnish description.
Good resistance to various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23 / 16A / 7.5kW / 400V
Lockable knob
Standard auxiliary contact 1S
Standard membrane seals:
2 x 20mm (Up and Down)
2 x 15mm (Bottom)
Standard vacuum breakers: 2 pcs
Cover sealable
Knob sealable in ON position
You can also order the same product with gland seals 2 x M20
KSM 316US CG (3600833) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC415 V
Rated operating voltage400-415 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated short-time withstand current lcw1.1 kA
Rated operation power at AC-23, 400 V7.5 kW
Conditioned rated short-circuit current Iq25 kA
Number of poles3
Product codes
SAPCBF427
STK3600369
PLC3600369
GTIN/EAN6419410328378
Manufacturer part number32837
Vendor material number3600369
Basic information
Package measurements (L x W x H)128 x 100 x 56 mm
Package volume0.717 l
Package weight0.31 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
