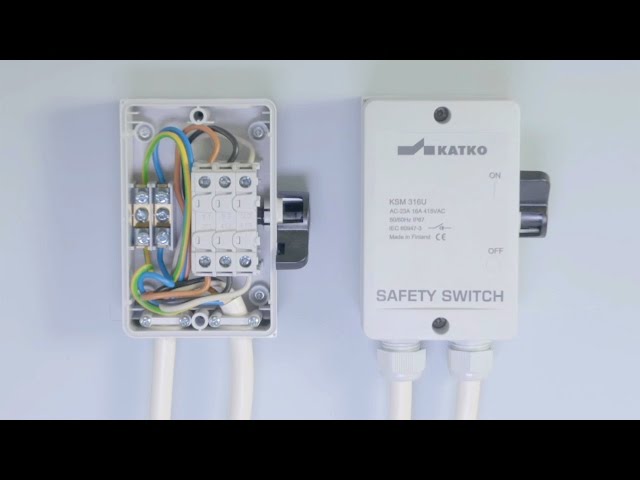

SAFETY SWITCH KSM 316 M1 3x16A 400V 7,5kW
Product code
3600365
3-pole safety switch with excellent protection against various chemicals and self-extinguishing material. The switch has a plastic housing and a lockable rotary knob. Standard features include membrane seals: 2 x 20 mm (top and bottom) and 2 x 15 mm (base), plus two pull-out devices. The switch cover is sealable and the rotary knob is sealable in the ON position.
Features
- AC-23/ 16 A / 7.5 kW / 400 V
- dimensions L 83 x W 128 x H 55.6
- IP67
The safety switch is also available with an auxiliary contact 1S KSM 316US (3600369).
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-415 V
Rated permanent current Iu40 A
Rated permanent current at AC-23, 400 V20 A
Rated permanent current at AC-21, 400 V40 A
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Conditioned rated short-circuit current Iq50 kA
Number of poles3
Product codes
SAPCBF426
STK3600365
PLC3600365
GTIN/EAN6419410328354
Manufacturer part number32835
Vendor material number3600365
Basic information
Package measurements (L x W x H)130 x 55 x 110 mm
Package volume0.787 l
Package weight0.3 kg
Base uniteach
Package units1 / 8 / 896
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
