SAFETY SWITCH KSM 316AECG 3x16A 400V 7,5kW
Product code
3600965
Polycarbonate enclosure, side-mountable IP67

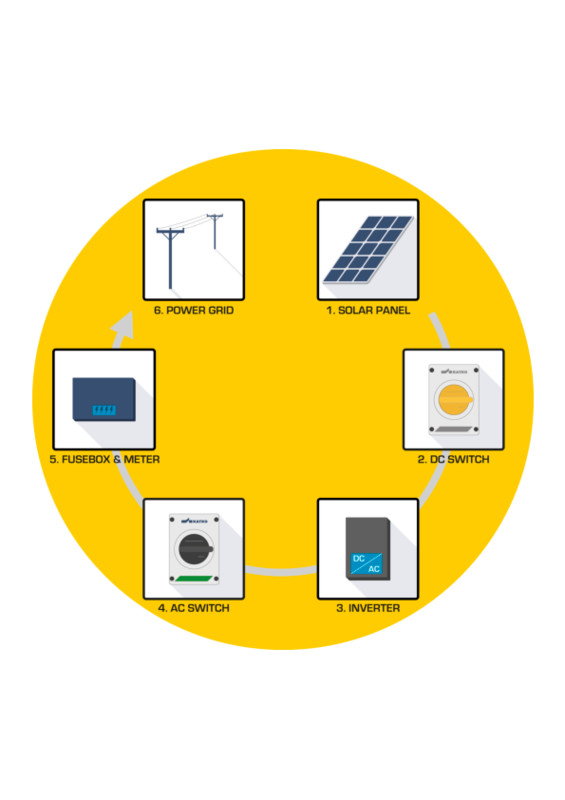

Marking: SOLAR POWER ISOLATION SWITCH
Excellent resistance to various chemicals / Self-extinguishing material

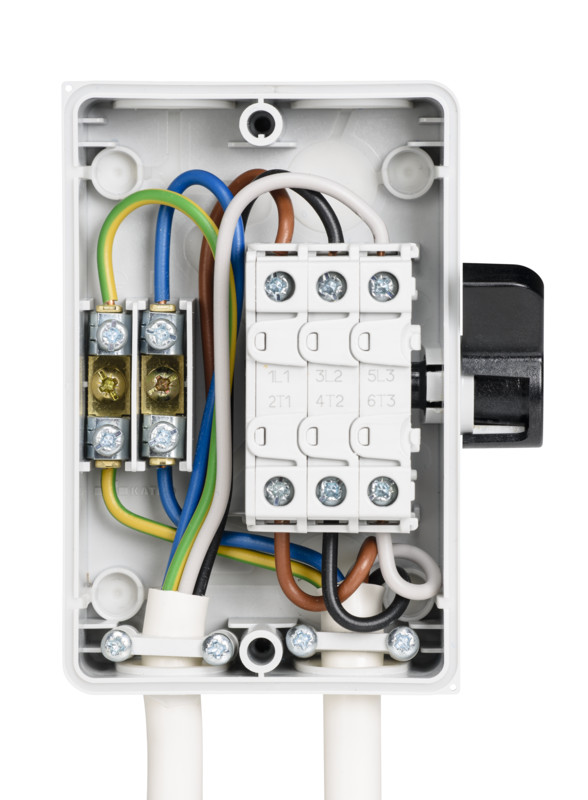

Safety switch
3-pole
AC-23 / 3x16A / 7.5kW / 400V
Lockable knob

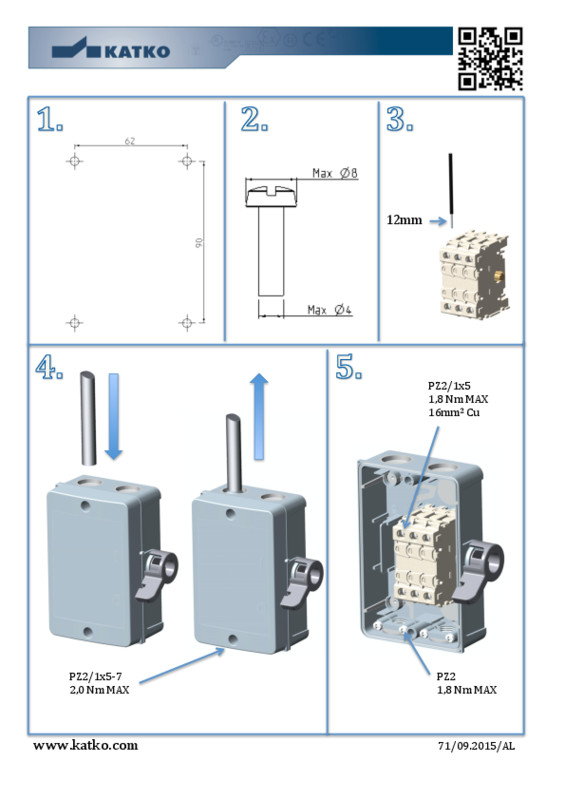

Includes gland seals2 x M20 (8-13mm) and
2x 20mm cable entries
holes 2 x 15mm (on bottom)
Optional accessories:
Cover sealable
Knob sealable in ON position
This product description is an automated translation of the original Finnish description.
Marking: SOLAR POWER ISOLATION SWITCH
Excellent resistance to various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23 / 3x16A / 7.5kW / 400V
Lockable knob
Includes gland seals2 x M20 (8-13mm) and
2x 20mm cable entries
holes 2 x 15mm (on bottom)
Optional accessories:
Cover sealable
Knob sealable in ON position
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC415 V
Rated operating voltage230-415 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-23, 400 V7.5 kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Product codes
SAPCGB209
STK3600965
PLC3600965
GTIN/EAN6419410328798
Manufacturer part number32879
Vendor material number3600965
Basic information
Package measurements (L x W x H)128 x 100 x 55.6 mm
Package volume0.712 l
Package weight0.28 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.126
GWP, uniteach
Source for GWP dataco2data.fi
