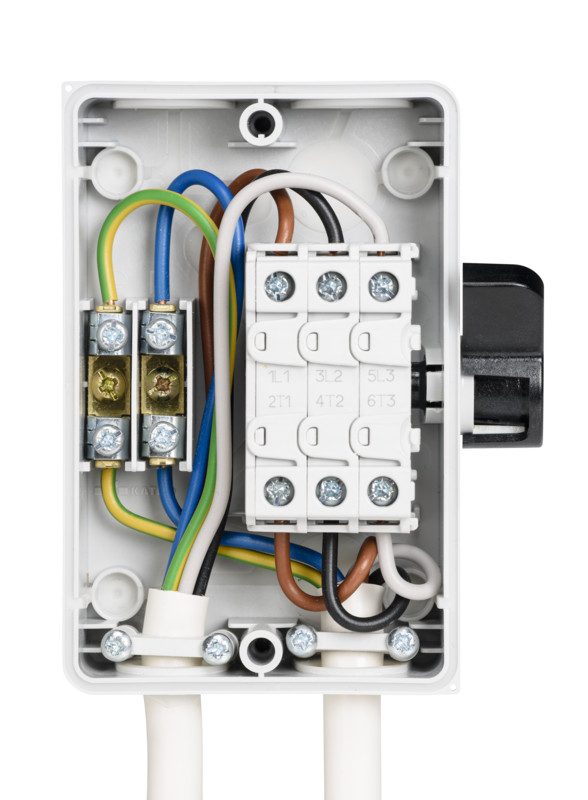

SAFETY SWITCH KSM 325 3x25A 400V S 11kW
Product code
3600376
Polycarbonate housing, side-mountable IP67
Good protection against various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23 / 25A / 11kW / 400V
Lockable knob
Standard auxiliary contact 1S
Standard membrane seals:
2 x 20mm (Up and Down)
2 x 15mm (At bottom)
Standard vacuum breakers: 2 pcs
Cover sealable
Knob sealable in ON position
You can also order the same product with gland seals 2 x M20
KSM 325US CG (3600837) This product description is an automated translation of the original Finnish description.
Good protection against various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23 / 25A / 11kW / 400V
Lockable knob
Standard auxiliary contact 1S
Standard membrane seals:
2 x 20mm (Up and Down)
2 x 15mm (At bottom)
Standard vacuum breakers: 2 pcs
Cover sealable
Knob sealable in ON position
You can also order the same product with gland seals 2 x M20
KSM 325US CG (3600837) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC415 V
Rated operating voltage415-415 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated short-time withstand current lcw1.1 kA
Rated operation power at AC-23, 400 V11 kW
Conditioned rated short-circuit current Iq25 kA
Number of poles3
Product codes
SAPCBF424
STK3600376
PLC3600376
GTIN/EAN6419410328415
Manufacturer part number32841
Vendor material number3600376
Basic information
Package measurements (L x W x H)128 x 100 x 56 mm
Package volume0.717 l
Package weight0.31 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
