SAFETY SWITCH KSM 325AE 3x25A 400V 11kW
Product code
3600910
Polycarbonate enclosure, wall-mountable IP67

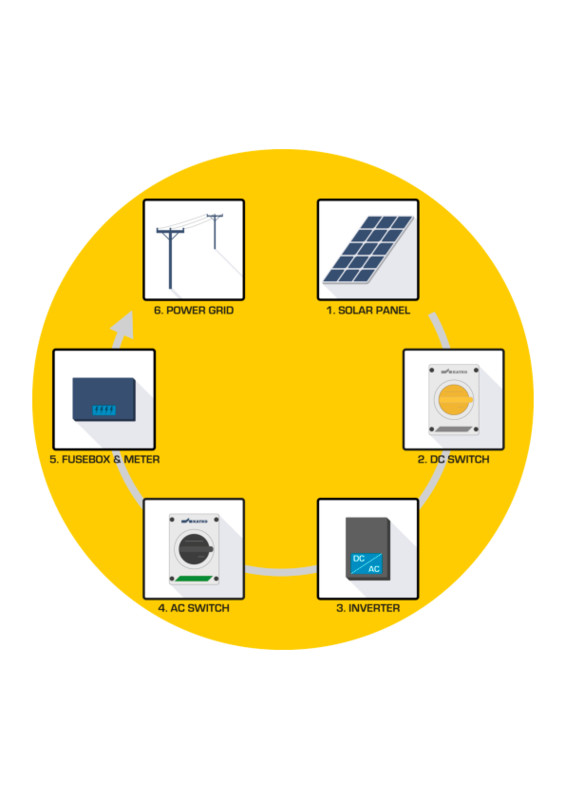

Label: SOLAR POWER ISOLATION SWITCH
Excellent resistance to various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23/ 3x25A / 11kW / 400V
Lockable knob
Standard membrane seals:
2 x 20mm (Top and Bottom)
2 x 15mm (Base)
Standard drain plugs: 2 pcs
Optional accessories:
Cover sealable
Knob sealable in ON position
You can also order the same product with gland seals M20
KSM 325U CG (3600835)
You can also order the same product with an auxiliary contact 1S
KSM 325US (3600346) This product description is an automated translation of the original Finnish description.
Label: SOLAR POWER ISOLATION SWITCH
Excellent resistance to various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23/ 3x25A / 11kW / 400V
Lockable knob
Standard membrane seals:
2 x 20mm (Top and Bottom)
2 x 15mm (Base)
Standard drain plugs: 2 pcs
Optional accessories:
Cover sealable
Knob sealable in ON position
You can also order the same product with gland seals M20
KSM 325U CG (3600835)
You can also order the same product with an auxiliary contact 1S
KSM 325US (3600346) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC400 V
Rated operating voltage400-400 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-23, 400 V11 kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Product codes
SAPCGB207
STK3600910
PLC3600910
GTIN/EAN6419410328668
Manufacturer part number32866
Vendor material number3600910
Basic information
Package measurements (L x W x H)128 x 100 x 55.6 mm
Package volume0.712 l
Package weight0.28 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.112
GWP, uniteach
Source for GWP dataco2data.fi
