SAFETY SWITCH KSM 325AECG 3x25A 400V 11kW
Product code
3600959
Polycarbonate enclosure, side-mountable IP67
Marking: SOLAR POWER ISOLATION SWITCH
Good resistance against various chemicals / Self-extinguishing material

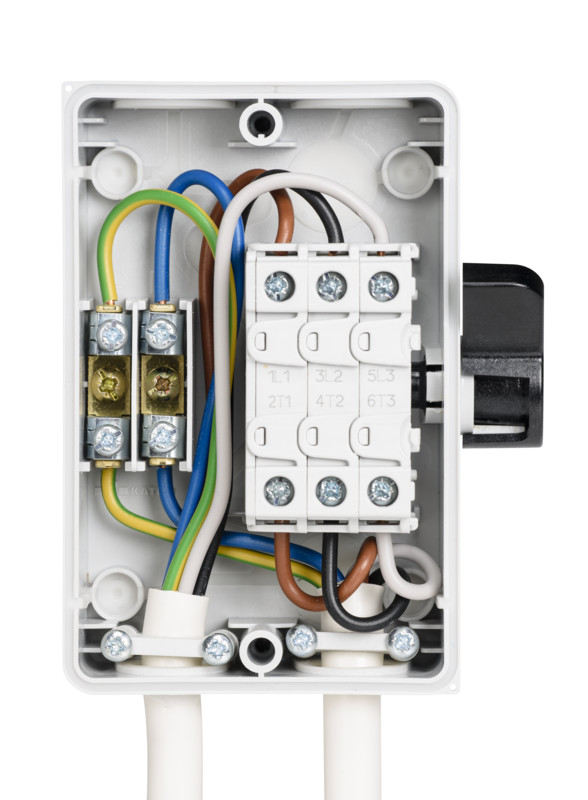

Safety switch
3-pole
AC-23 / 3x25A / 11kW / 400V
Lockable knob
Includes 2 x M20 gland seals
Standard: membrane seals and 2 x drain plugs
2 x 20mm
2 x 15mm (at bottom)
Optional accessories:
Cover sealable
Knob sealable in ON position
This product description is an automated translation of the original Finnish description.
Marking: SOLAR POWER ISOLATION SWITCH
Good resistance against various chemicals / Self-extinguishing material
Safety switch
3-pole
AC-23 / 3x25A / 11kW / 400V
Lockable knob
Includes 2 x M20 gland seals
Standard: membrane seals and 2 x drain plugs
2 x 20mm
2 x 15mm (at bottom)
Optional accessories:
Cover sealable
Knob sealable in ON position
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC415 V
Rated operating voltage230-415 V
Rated permanent current Iu25 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V25 A
Rated operation power at AC-23, 400 V11 kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Product codes
SAPCGB215
STK3600959
PLC3600959
GTIN/EAN6419410328767
Manufacturer part number32876
Vendor material number3600959
Basic information
Package measurements (L x W x H)128 x 100 x 55.6 mm
Package volume0.712 l
Package weight0.28 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.6496
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID12.23
