SAFETY SWITCH KSM 416 4x16A 400V 7,5kW IP67
Product code
3600832
Polycarbonate enclosure, side-mountable IP67
Good protection against various chemicals / Self-extinguishing material
Safety switch- 4-pole
- AC-23/400V / 20A / 7.5kW
- AC-23/690V / 20A / 15kW
- Cover sealable
- Knob sealable in ON position
- Saddle flap KSL 5 (3609274) available separately
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC415 V
Rated operating voltage400-415 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V7.5 kW
Number of poles4
Number of auxiliary contacts as normally closed contact0
Product codes
SAPCVJ722
STK3600832
PLC3600832
GTIN/EAN6419410328538
Manufacturer part number32853
Vendor material number3600832
Basic information

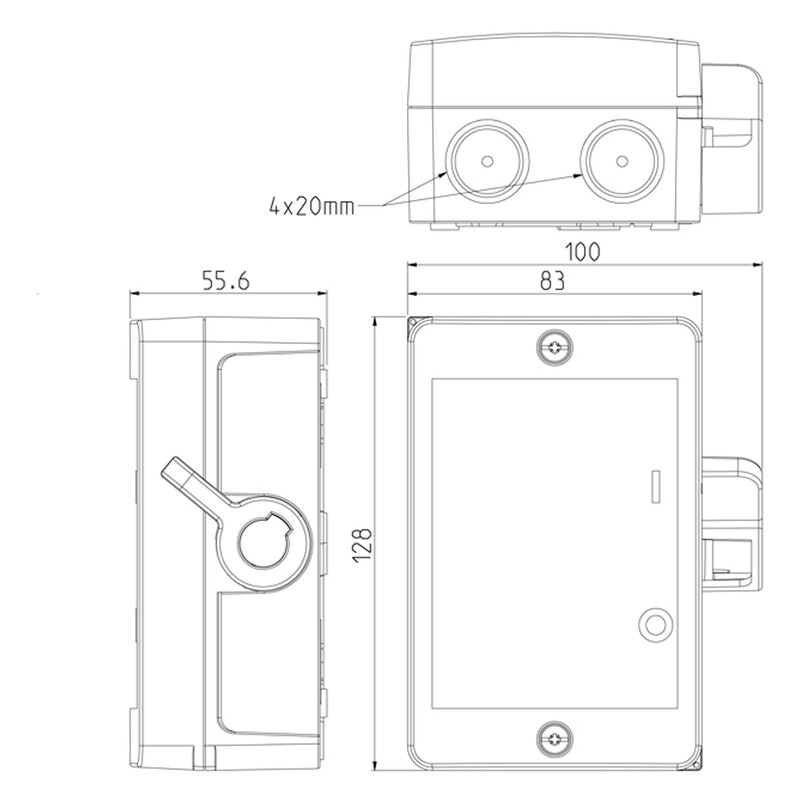

Package measurements (L x W x H)128 x 53 x 106 mm
Package volume0.719 l
Package weight0.306 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122205
BrandKATKO
VendorKATKO OY
