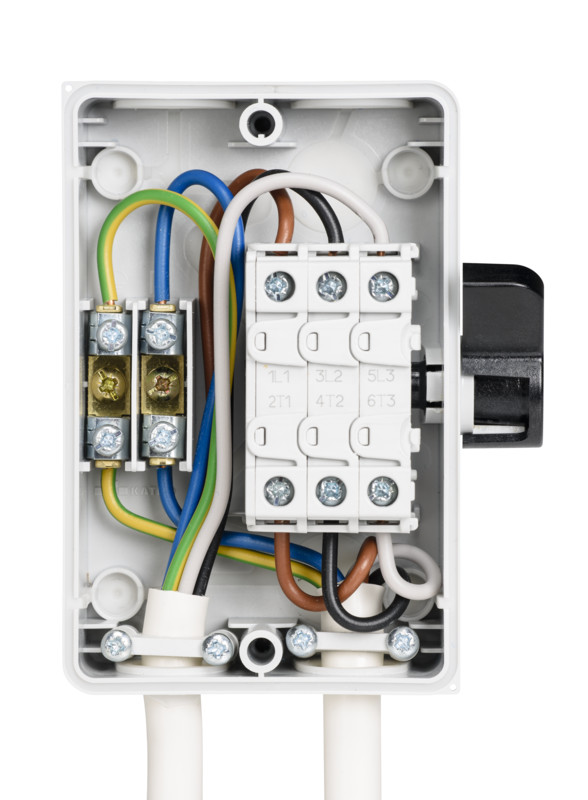

SAFETY SWITCH KSM 416AE 4x16A 400V 7,5kW
Product code
3600908
The safety switch housing is made of polycarbonate and provides excellent protection against various chemicals. The material is self-extinguishing and highly resistant to UV radiation. The safety switch is operated by twisting from the side.

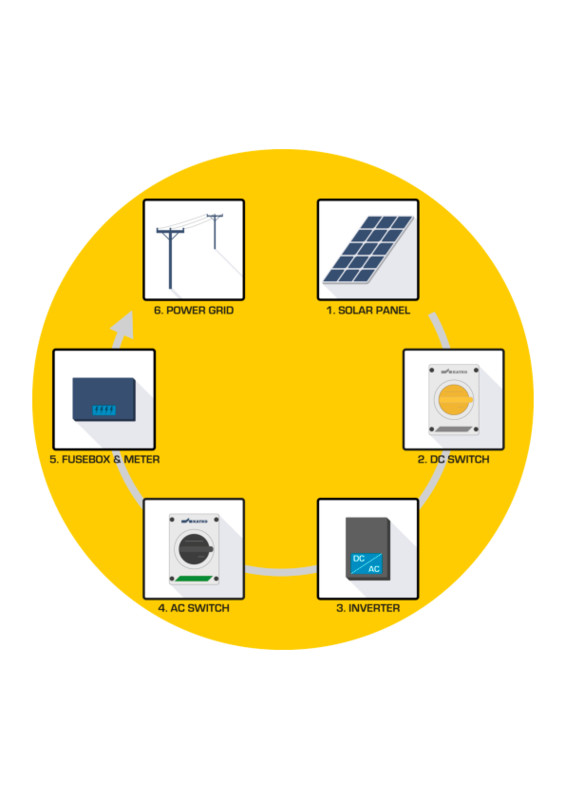

Label: Solar power system isolation switch
Features- Protection class IP67
- 4-pole
- AC-23 / 4 x 16 A / 7.5 kW / 400 V
- Lockable twist handle
- Standard membrane seals: 2 x 20 mm (top and bottom) and 2 x 15 mm (bottom)
- Standard cable strain relief: 2 pieces
- Optional accessories: cover and twist handle sealable in ON position
- Dimensions: L 83 x W 128 x H 55.6
- Color: gray housing, black twist handle
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC400 V
Rated operating voltage400-400 V
Rated permanent current Iu16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current at AC-21, 400 V16 A
Rated operation power at AC-23, 400 V7.5 kW
Number of poles4
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Product codes
SAPCGB210
STK3600908
PLC3600908
GTIN/EAN6419410328644
Manufacturer part number32864
Vendor material number3600908
Basic information
Package measurements (L x W x H)58 x 110 x 130 mm
Package volume0.829 l
Package weight0.27 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.351
GWP, uniteach
Source for GWP dataco2data.fi
