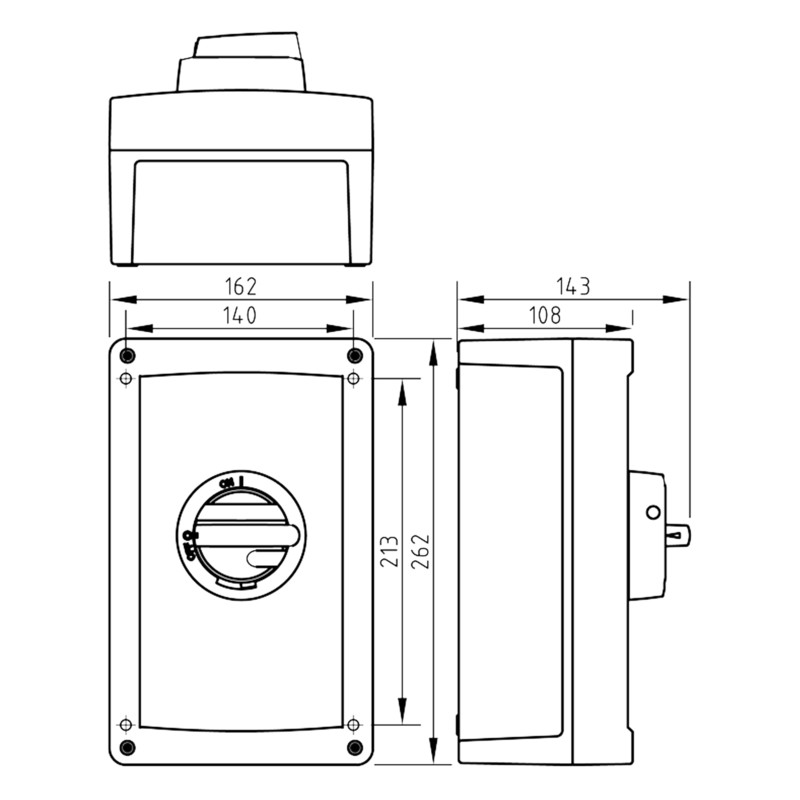

SAFETY SWITCH KUA 363 3x63A 400V 1V 30kW
Product code
3600413
Aluminium enclosery IP66
Available also (IP67)
Excellent resistance to harsh weather conditions and good UV radiation resistance
Safety switch:
3-poles
AC-23/400V / 63A / 30kW
AC-23/690V / 40A / 37kW
Padlockable
Includes aux.contact (1NO + 1NC)
Includes cable glands:
2 x M40 (19-28mm) + M16 (5-10mm)
Available separately:
Aux.contact
KU2.V (2NO + 2NC) (3600491) This product description is an automated translation of the original Finnish description.
Available also (IP67)
Excellent resistance to harsh weather conditions and good UV radiation resistance
Safety switch:
3-poles
AC-23/400V / 63A / 30kW
AC-23/690V / 40A / 37kW
Padlockable
Includes aux.contact (1NO + 1NC)
Includes cable glands:
2 x M40 (19-28mm) + M16 (5-10mm)
Available separately:
Aux.contact
KU2.V (2NO + 2NC) (3600491) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPALR443
STK3600413
PLC3600413
GTIN/EAN6419410311158
Manufacturer part number31115
Vendor material number3600413
Basic information
Package measurements (L x W x H)262 x 162 x 143 mm
Package volume6.069 l
Package weight2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)12.054
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID2.222
