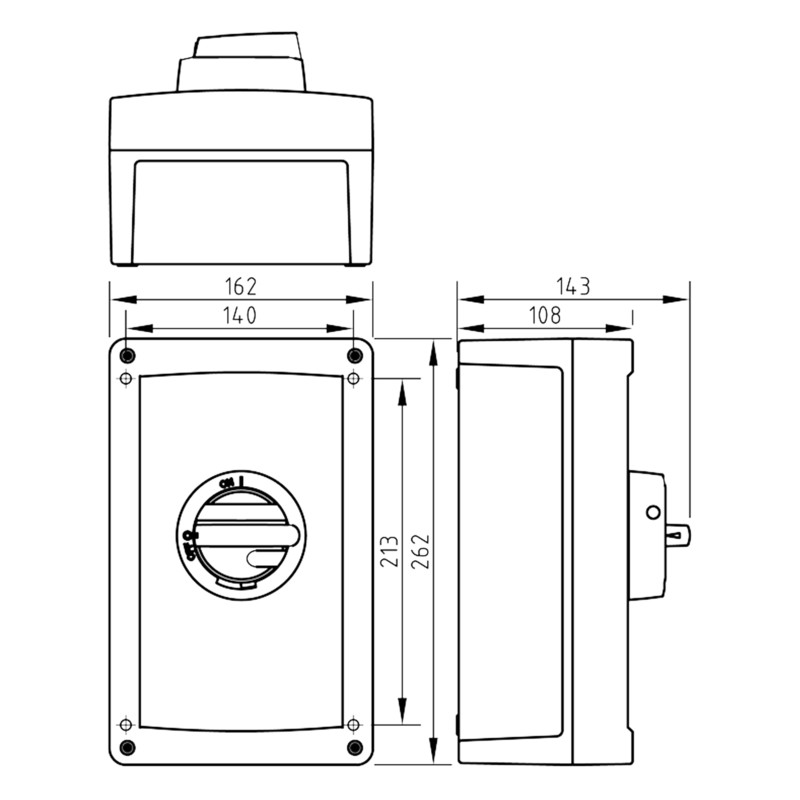

SAFETY SWITCH KUA 632 6x32A 400V 15kW
Product code
3600429
Aluminium enclosery IP66
Available also (IP67)
Excellent resistance to harsh weather conditions and good UV radiation resistance
Safety switch
6-poles
AC-23/400V / 32A / 15kW
AC-23/690V / 25A / 22kW
Padlockable
Includes cable glands:
4 x M40 (19-27mm)
Available separately:
Auxiliary contact: KU1.V (1NO+1NC) 3600490
or
KU2.V (2NO + 2NC) 3600491
(Note! Add M16 cable gland for auxiliary contact cable) This product description is an automated translation of the original Finnish description.
Available also (IP67)
Excellent resistance to harsh weather conditions and good UV radiation resistance
Safety switch
6-poles
AC-23/400V / 32A / 15kW
AC-23/690V / 25A / 22kW
Padlockable
Includes cable glands:
4 x M40 (19-27mm)
Available separately:
Auxiliary contact: KU1.V (1NO+1NC) 3600490
or
KU2.V (2NO + 2NC) 3600491
(Note! Add M16 cable gland for auxiliary contact cable) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V25 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw1.7 kA
Rated operation power at AC-23, 400 V15 kW
Switching power at 400 V0 kW
Product codes
SAPALR441
STK3600429
PLC3600429
GTIN/EAN6419410310311
Manufacturer part number31031
Vendor material number3600429
Basic information
Package measurements (L x W x H)262 x 162 x 143 mm
Package volume6.069 l
Package weight2.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.253
GWP, uniteach
Source for GWP dataco2data.fi
