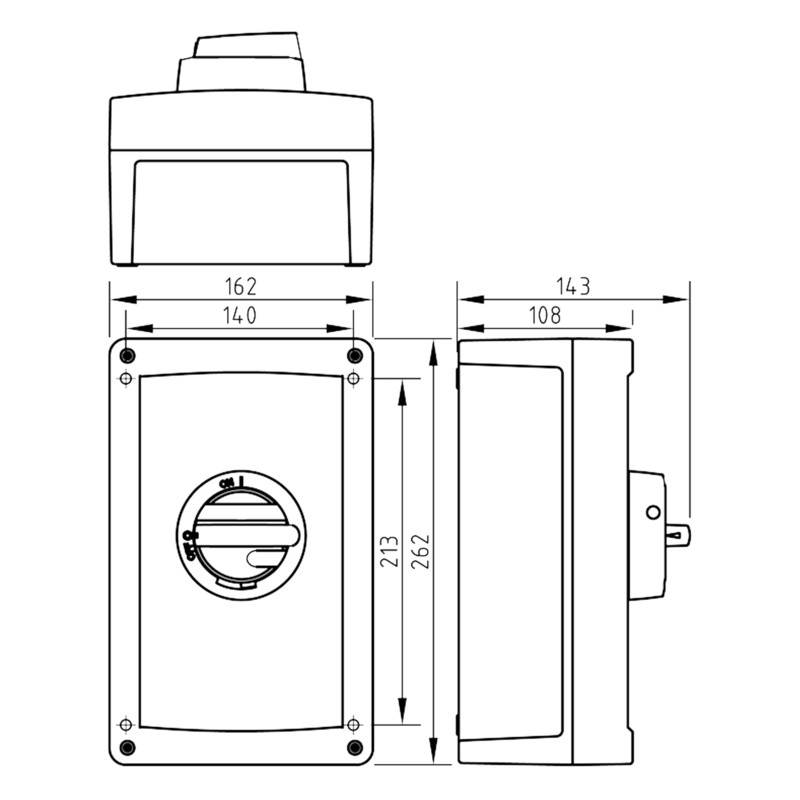

SAFETY SWITCH KUA 663 6x63A 400V 30kW
Product code
3600425
Aluminium enclosure IP66
Excellent resistance to harsh weather conditions and good UV radiation resistance
Safety switch
6-pole
AC-23/400V / 63A / 30kW
AC-23/690V / 40A / 37kW
Aluminium enclosure (IP66)
Available also (IP67)
Padlockable
Includes cable glands:
4 x M40 (19-27mm)
Available separately:
Auxiliary contact: KU1.V (1NO + 1NC) 3600490
or
KU2.V (2NO + 2NC) 3600491
(Note! Add M16 cable gland for auxiliary contact cable) This product description is an automated translation of the original Finnish description.
Excellent resistance to harsh weather conditions and good UV radiation resistance
Safety switch
6-pole
AC-23/400V / 63A / 30kW
AC-23/690V / 40A / 37kW
Aluminium enclosure (IP66)
Available also (IP67)
Padlockable
Includes cable glands:
4 x M40 (19-27mm)
Available separately:
Auxiliary contact: KU1.V (1NO + 1NC) 3600490
or
KU2.V (2NO + 2NC) 3600491
(Note! Add M16 cable gland for auxiliary contact cable) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches2
Max. rated operation voltage Ue AC800 V
Rated operating voltage400-690 V
Rated permanent current Iu100 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V100 A
Rated operation power at AC-3, 400 V0 kW
Rated short-time withstand current lcw2.3 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V0 kW
Product codes
SAPALR444
STK3600425
PLC3600425
GTIN/EAN6419410310342
Manufacturer part number31034
Vendor material number3600425
Basic information
Package measurements (L x W x H)262 x 162 x 143 mm
Package volume6.069 l
Package weight2.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122217
BrandKATKO
VendorKATKO OY
The country of origin stated by the supplierFinland
Documents (5)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)15.387
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID2.102
